| Refrigerant | R32 |
Ideal for those looking for energy efficient air-to-water heat pump hydronic home heating solutions for compact spaces.

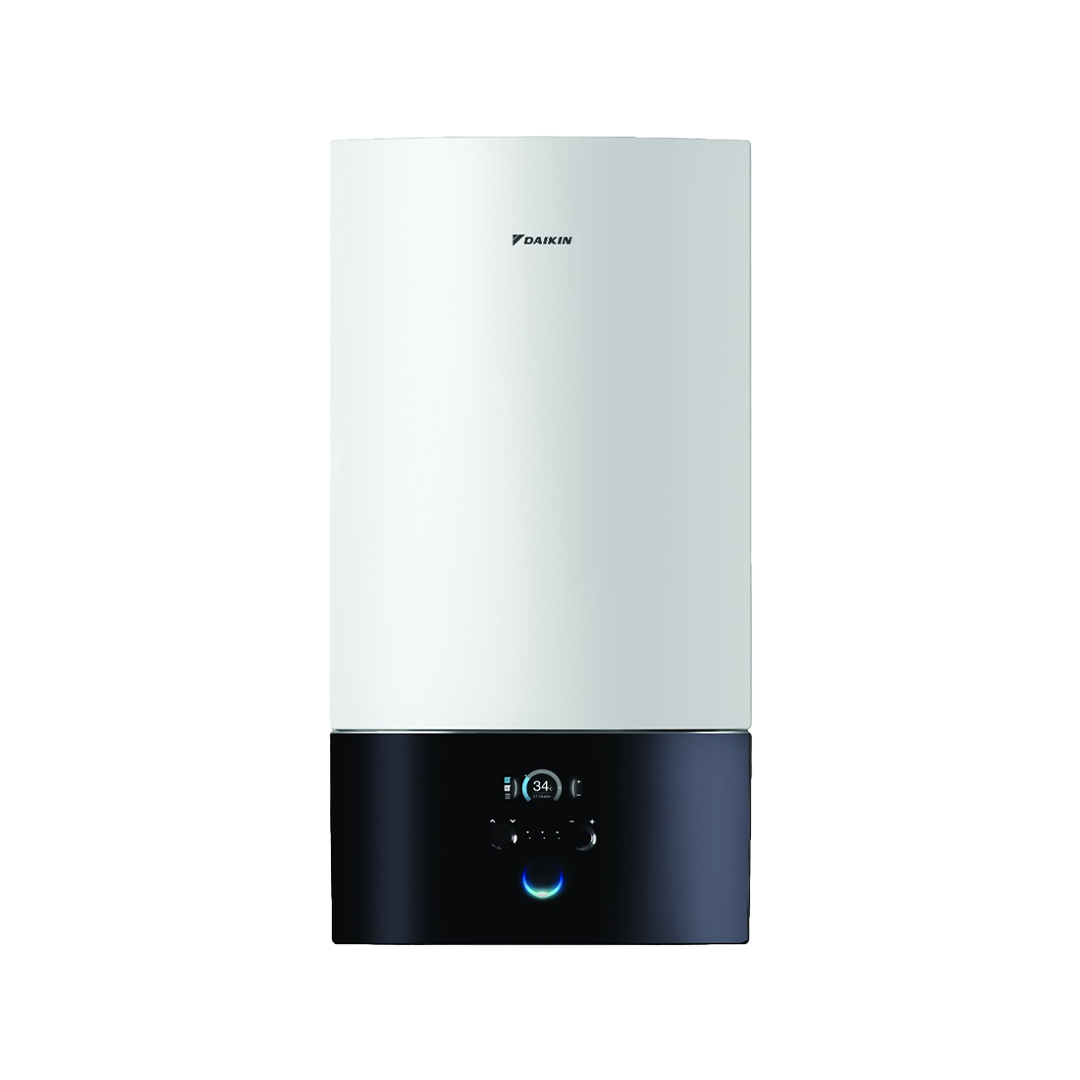

By using renewable energy from the outside air to heat water, the Altherma 3R hot water heat pump offers greener, more energy efficient home heating with the option to heat your hot water supply too.
Featuring next-gen R32 refrigerant for zero ozone depletion potential, it’s the perfect system for those who want to make the greener choice.
Altherma 3 RW Flyer here
Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.
Technical Specifications / Documents
| System Name | Hydro Box | (BIM) Engineering Data Links | Capacity | Dimensions (IU) | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| Outdoor Unit | (kg) | ||||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | OU | |||
| EHBH08EF-08EA | EHBH08EF6V | ERGA08EAV3H | - | - | 7.5 | 840 | 440 | 390 | 42 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
High Performance
Delivering temperatures up to 65 °C at high efficiency, the R-32 Daikin Altherma 3 R is suitable for both underfloor heating and radiators and retains its pedigree trademark in frost protection down to -25 °C, ensuring reliable operation even in the coldest climates. The optimal combination technology offers the highest performance: Heating efficiency up to a COP of 4.6 (at 7 °C/35 °C) *Available in 8 kW.
Flexibility To Provide Domestic Hot Water
If the end-user requires hot water and installation height is limited, a separate tank can provide the required installation flexibility.
Easy To Control
The combined effect of the Daikin Altherma weather dependent set-point controls and its inverter compressors maximises the efficiency of the new R-32 Daikin Altherma 3 R at each outdoor temperature, assuring consistent room temperatures at all times.
Easy To Install
Delivered ready to work: all key hydraulic elements are already factory mounted. The new design enables that all servicing can be done from the front and all piping can be accessed at the top of the unit. Stylish modern indoor unit outlook. The outdoor unit is tested and charged with refrigerant, installation time is reduced.
Controller Features
Easily set operation parameters
Basic functions focusing on space heating and domestic hot water (ON/OFF, temperature set point)
Intuitive touch-button control
Symbol driven end-user interface with intuitive touch button control
Sleek and elegant design
Sleek and elegant design, available in 3 colours to match any interior design
Compact, measures only 85 x 85 mm
Compact, only 85x85mm, easy integration in standard electrical installation boxes
