Refrigerant | R410A |

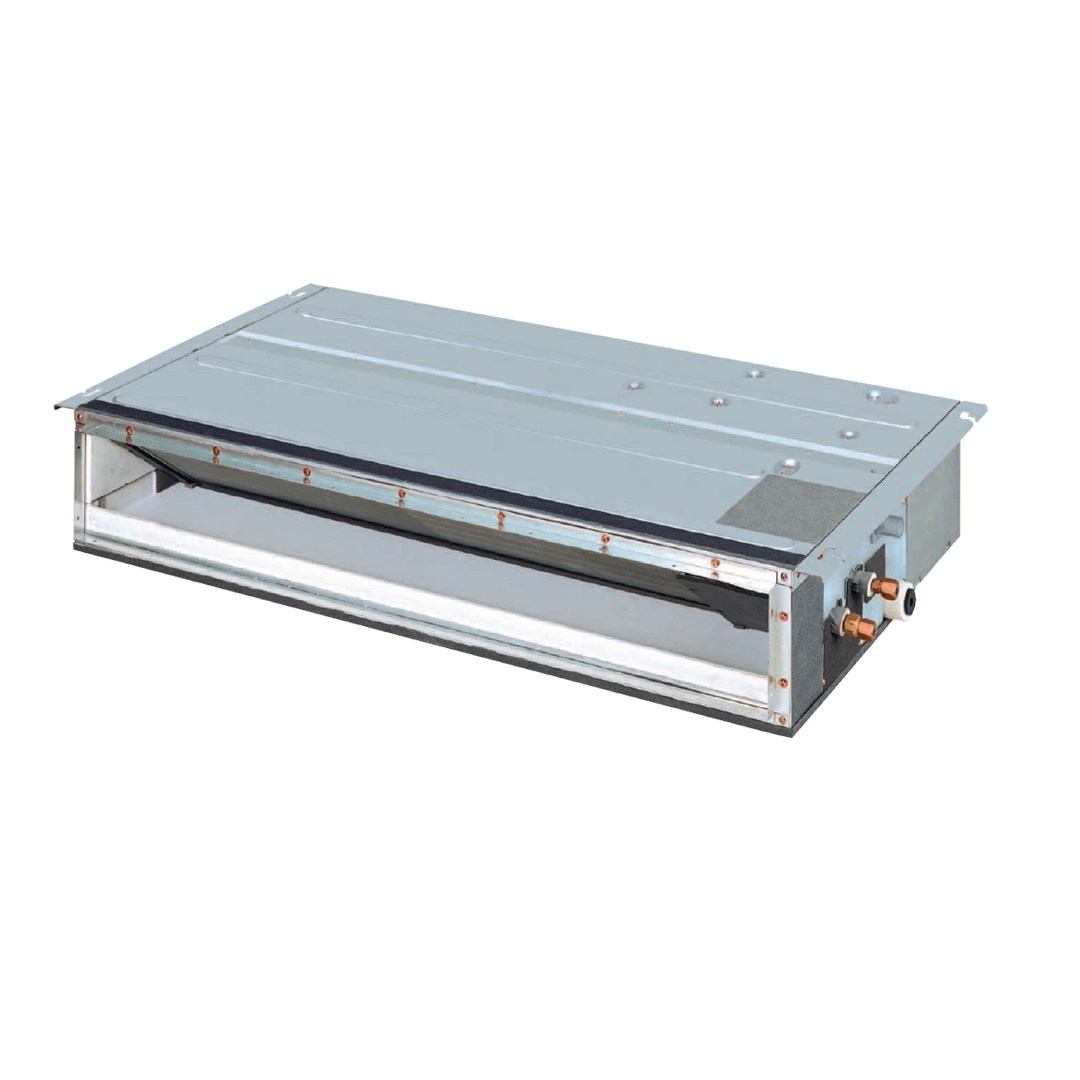

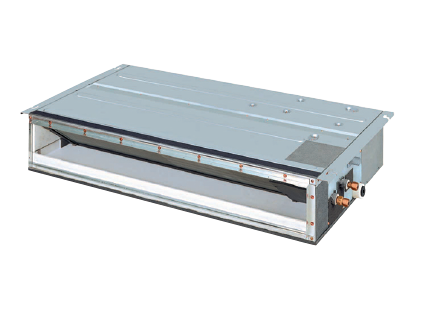

The FXDQ-P(N)DVE series are a range of low profile bulkhead with emphasis on quiet air conditioning and ease of installation in drop ceilings. These units come with 3-step fan control, 2 selectable static pressure modes and are equipped with a drain pump as standard accessory.
FXDQ-P Flyer here
![](http://www.daikin.co.nz/cdn/shop/files/FXDQ-P-N-BVE.png?v=1680493028)
Technical Specifications / Documents
(BIM) Engineering Data Links | Capacity | Air Flow (IU) | Max ESP | Dimensions (IU) | Weight | ||||
---|---|---|---|---|---|---|---|---|---|
Indoor Unit | (kg) | ||||||||
(kW) | (kW) | (kW) | (mm) | (mm) | (mm) | IU | |||
FXDQ20PDVE | 2.2 | 1.9 | 2.5 | 133 | 30 | 200 | 700 | 620 | 23 |
FXDQ25PDVE | 2.8 | 2.1 | 3.2 | 133 | 30 | 200 | 700 | 620 | 23 |
FXDQ32PDVE | 3.6 | 2.6 | 4.0 | 133 | 30 | 200 | 700 | 620 | 23 |
FXDQ40NDVE | 4.5 | 3.3 | 5.0 | 175 | 44 | 200 | 900 | 620 | 27 |
FXDQ50NDVE | 5.6 | 4.0 | 6.3 | 208 | 44 | 200 | 90 | 620 | 28 |
FXDQ63NDVE | 7.1 | 4.9 | 8.0 | 275 | 44 | 200 | 1100 | 620 | 31 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
![...](http://www.daikin.co.nz/cdn/shop/files/FXDQ-NDVE.png?v=1684203933)
![...](http://www.daikin.co.nz/cdn/shop/files/Comfort_3e5bfd51-7722-4c3c-a64f-4998271440bb.png?v=1687234005)
Comfort
Control of the airflow rate can be selected from 3-step control and Auto. Auto airflow rate control can be selected with wired remote controller.
![...](http://www.daikin.co.nz/cdn/shop/files/Whisper-Quiet.png?v=1677721362)
Low Sound Level
Low operation sound level: down to 23 dB(A).
![...](http://www.daikin.co.nz/cdn/shop/files/Optional_Drain_Pump_Kit.png?v=1688418303)
Drain Pump Accessory
Drain pump is equipped as standard accessory with 750 mm lift.
![...](http://www.daikin.co.nz/cdn/shop/files/easy_installation.png?v=1677376062)
Installation Flexibility
Only 200 mm in height, this model can be installed in rooms with as little as 240 mm in height for the ceiling space between the drop-ceiling and ceiling slab.
