| Refrigerant | R32 |

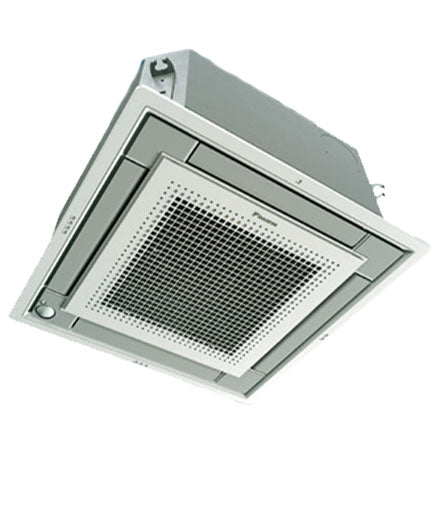

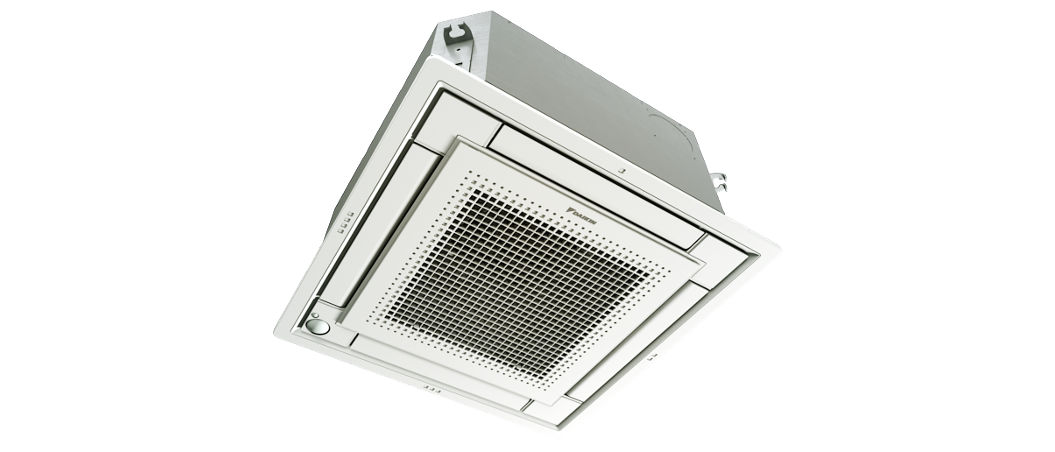

Daikin’s SkyAir Compact Cassette is a powerful, efficient and discreet solution for commercial, retail and residential applications where both aesthetics and performance are paramount.
The Compact Cassette combines the latest technology with innovative functions for high operating efficiency and user comfort, all within a unique design that allows the visible panel to fit flush within standard architectural ceiling panels.
FFA Flyer here
Technical Specifications / Documents
| System Name | (BIM) Engineering Data Links | Capacity | Airflow (IU) | Dimensions | Max Pipe Length | Level Difference | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | TC | HC | SC | H | W | D | OU-IU | OU-IU | kg | kg | ||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | (mm) | (mm) | IU | OU | ||||
| FFA25A-E | FFA25AVM | RZAC25EVM | 2.5 | 2.4 | 3.2 | 150 | 260 | 575 | 575 | 20 | 15 | 16 | 28 |
| FFA35A-E | FFA35AVM | RZAC35EVM | 3.5 | 3.1 | 4.2 | 167 | 260 | 575 | 575 | 20 | 15 | 16 | 28 |
| FFA50A-E | FFA50AVM | RZAC50EVM | 5.0 | 3.7 | 6.0 | 200 | 260 | 575 | 575 | 30 | 20 | 17.5 | 54 |
| FFA60A-E | FFA60AVM | RZAC60EVM | 6.0 | 4.5 | 7.1 | 250 | 260 | 575 | 575 | 30 | 20 | 17.5 | 54 |
| FFA71A-E | FFA71AVM | RZAC71EVM | 7.1 | 5.0 | 8.0 | 258 | 260 | 575 | 575 | 30 | 20 | 17.5 | 55 |
Key Features & Techology
It's the unique features of Daikin products that makes us the world leader.
Compact Design

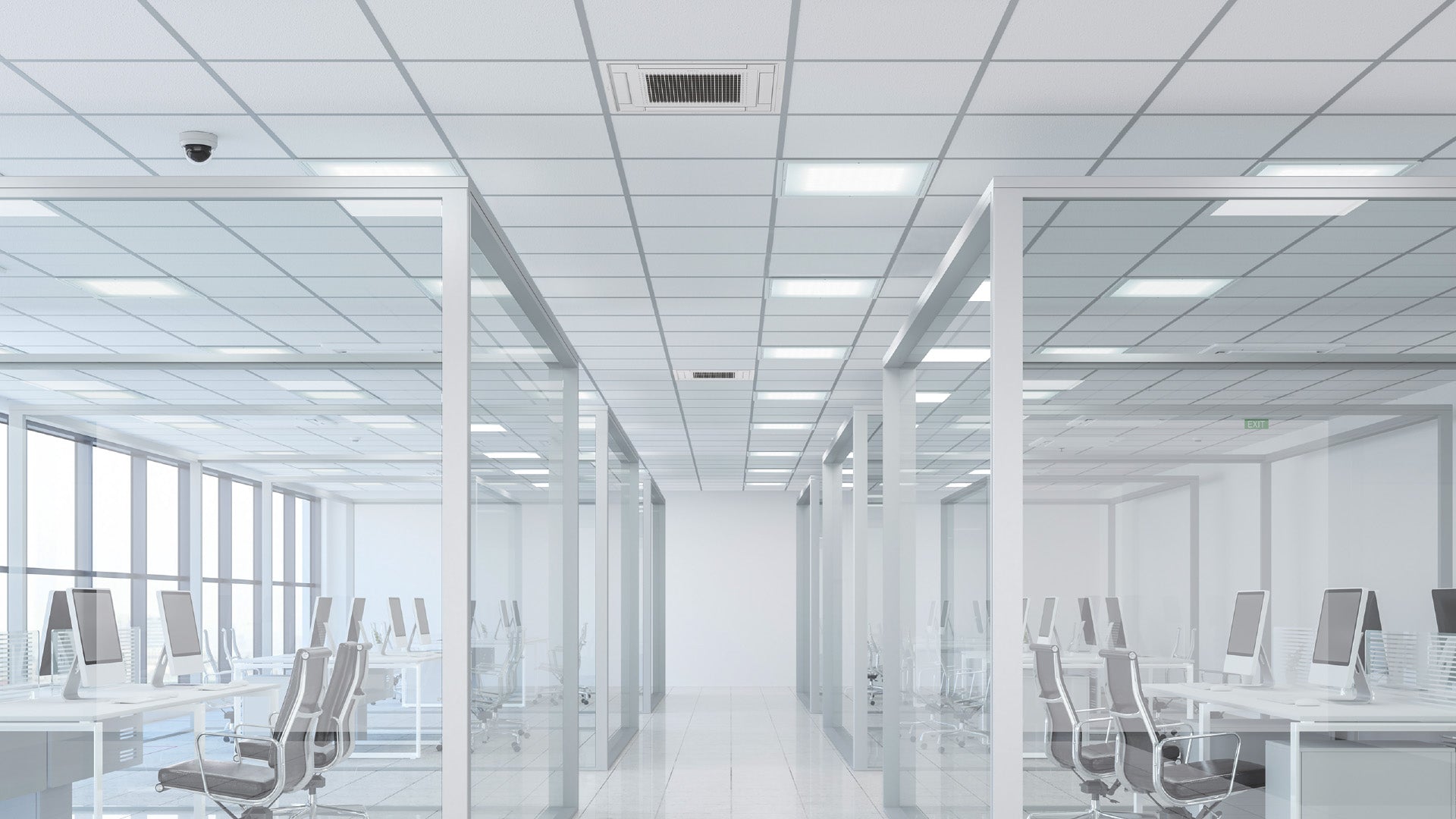

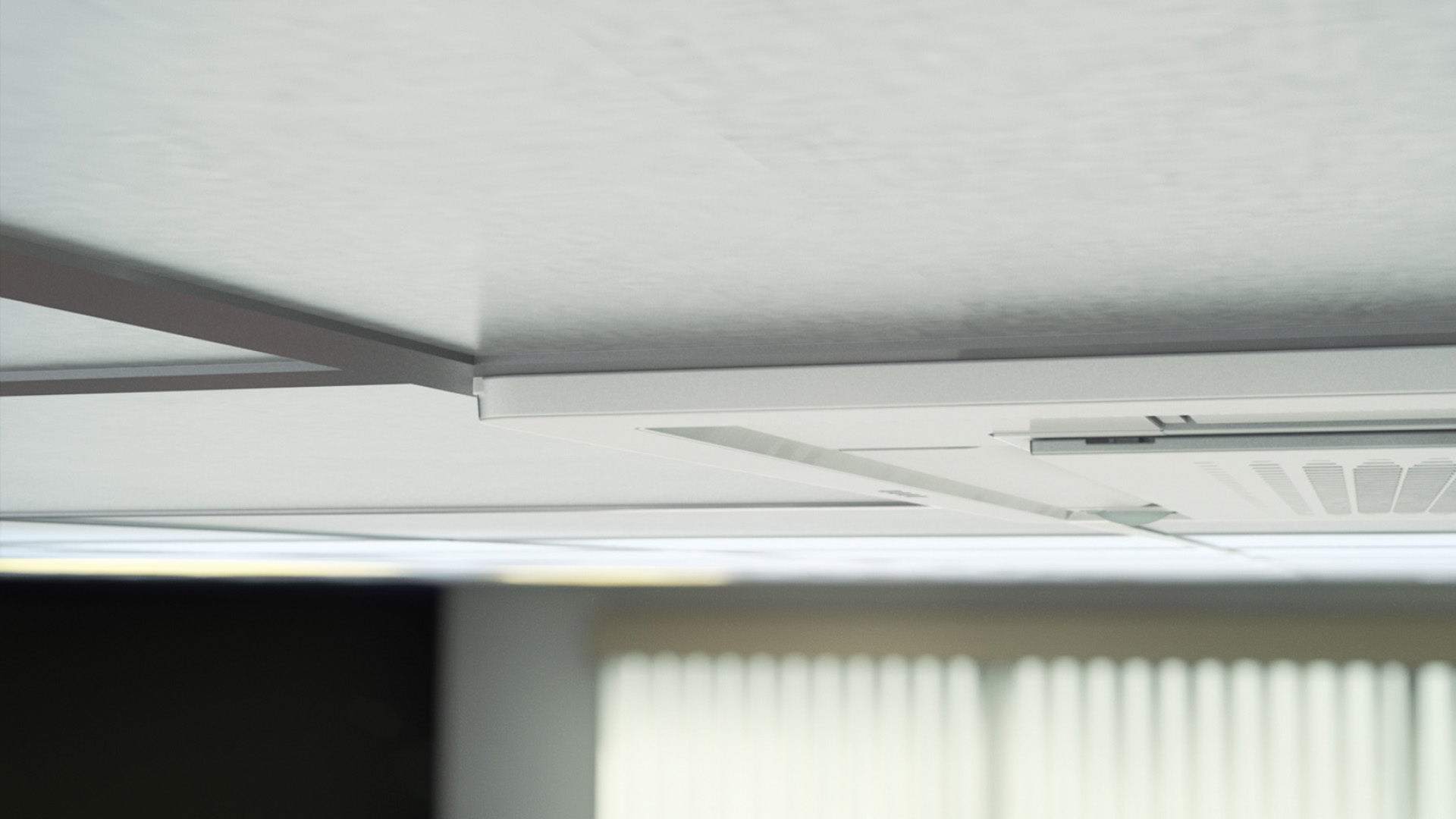

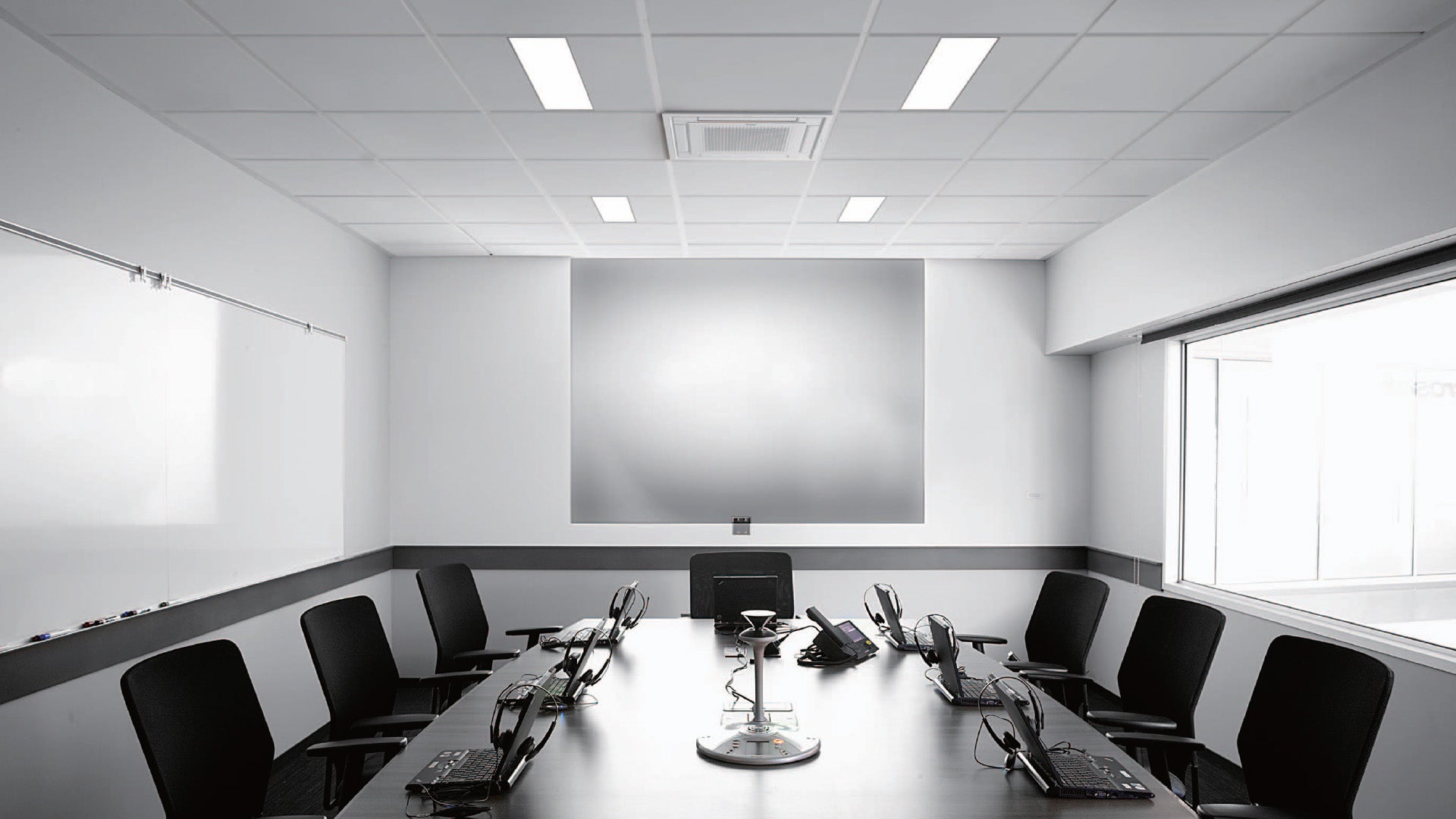

Daikin’s Compact Cassette is the first cassette that fits fully flat with the ceiling, so it blends discreetly in with the room's decor.
Ceiling Fit
Because air quality is as important as temperature for occupant comfort, Daikin's FFA-AVM Compact Cassette features advanced filters to help remove dust particles to ensure the air is clean.
Air Quality
Because air quality is as important as temperature for occupant comfort, Daikin's FFA-AVM Compact Cassette features advanced filters to help remove dust particles to ensure the air is clean.
Quiet Comfort
The Compact Cassette is one of the quietest units in the light commercial market and, in addition to the sensors, has various functions that are designed to enhance user comfort.
Presence Sensor (Optional)
When there is nobody in the room, the presence sensor* adjusts the set point or switches off the unit, avoiding unnecessary cooling or heating and helping to reduce energy consumption. When motion is detected the temperature is reset to its original setpoint ensuring perfect, energy efficient operation.
Location Sensors (Optional)
The sensor* also adapts the direction of the airflow depending of where people are situated in the room, reducing draughts and enhancing occupant comfort. Because heat rises, air is typically warmer near the ceiling and cooler near the floor. The FFA-AVM cassette’s ‘floor’ sensor* detects the temperature difference, redirecting airflow for more even temperature distribution. *Additional sensor kit BRYQ60AAW required to enable this feature(floor and presence sensors included)
Technology
Daikin’s focus on innovation has led to the development of cutting edge technologies for the provision of quiet, efficient air conditioned comfort, and a high efficiency compressor helps Daikin achieve an exceptionally high COP.
Reluctance DC Compressor Motor
Higher efficiencies with 2 different torques
Magnetic torque of Neodymium magnet
Reluctance torque
Lower energy consumption especially at lower operational frequencies
Swing Compressor
Large Energy Savings
smooth rotation with low friction & refrigerant gas compression
Low Vibration & Noise
smooth piston motion works as if sliding along a ‘groove’
High Durability
fewer moving parts in contact during operation increases reliability
DC Fan Motor
By utilising high power permanent magnets instead of the induced magnetism of conventional AC motors, Daikin’s DC motor can deliver significantly higher motor efficiency, especially at low speeds.
Note: Data based on studies conducted under controlled conditions in Daikin laboratories.
