Compact (FXZQ-B)

Refrigerant R410A

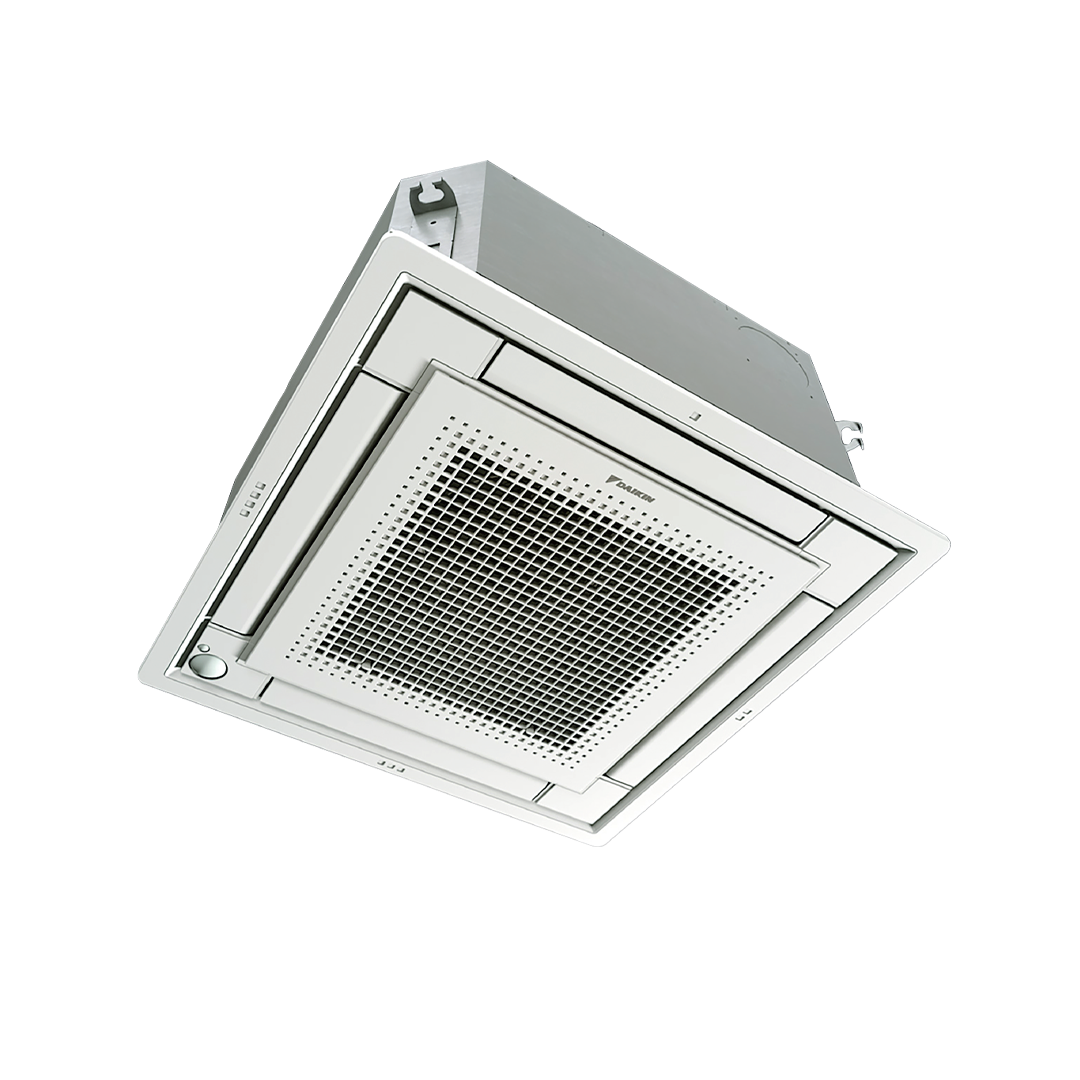

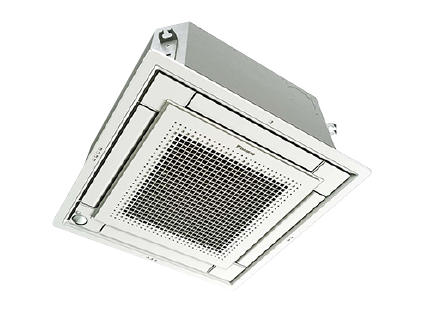

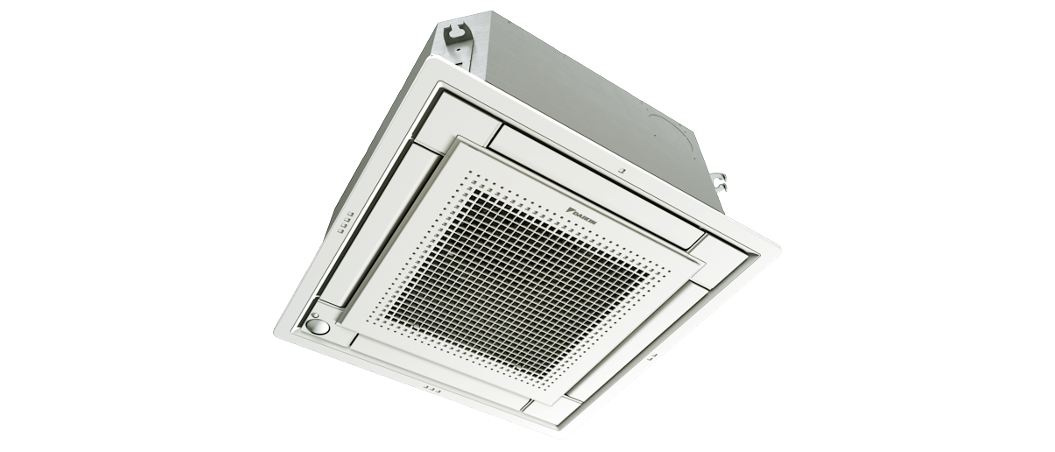

The FXZQ-BVM series is a fully flat, compact and elegant cassette that fits flush within standard architectural ceiling panels. This clever design enables the unit to integrate fully within one ceiling tile enabling lights, speakers and sprinklers to be installed in the adjoining ceiling tiles.

FXZQ-BVM Flyer here

Technical Specifications / Documents

(BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Weight
Indoor Unit TC HC SC H W D (kg)
(kW) (kW) (kW) (mm) (mm) (mm) IU
FXZQ20BVM 2.2 1.7 2.5 145 260 575 575 15.5
FXZQ25BVM 2.8 2.0 3.2 150 260 575 575 15.5
FXZQ32BVM 3.6 2.4 4.0 167 260 575 575 15.5
FXZQ40BVM 4.5 3.3 5.0 192 260 575 575 16.5
FXZQ50BVM 5.6 4.1 6.3 242 260 575 575 18.5

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Compact Design

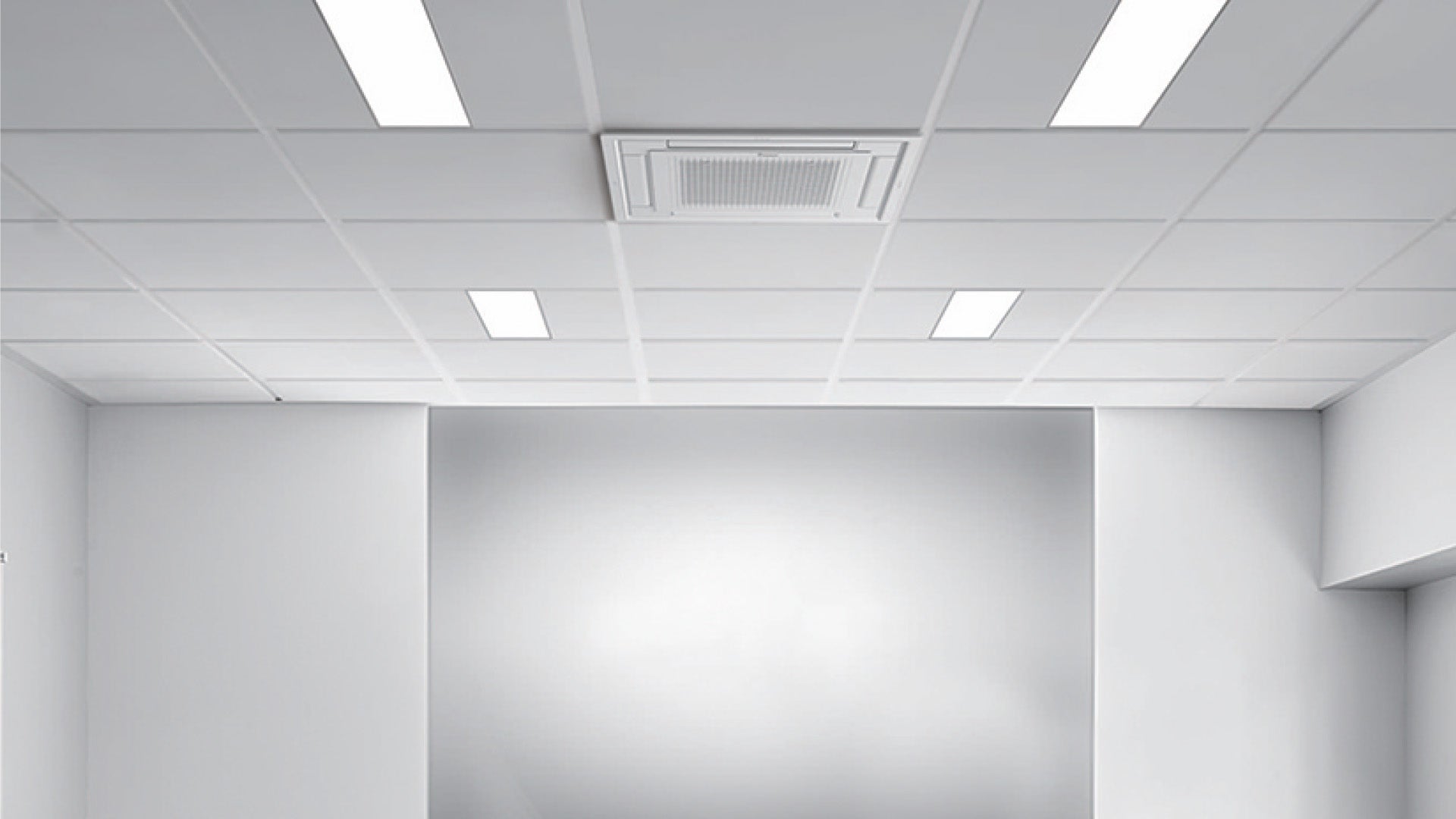

Fully-flat integration in standard architectural ceiling tiles, leaving only 8 mm. Remarkable blend of iconic design and engineering excellence with an elegant finish in white. The newly designed panel integrates fully within one ceiling tile enabling lights, speakers and sprinklers to be installed in the adjoining ceiling tiles.

...
Dual Sensors (Option)

Two optional intelligent sensors improve energy efficiency and comfort. An optional presence and floor sensor kit can be fitted to the cassette for draught prevention, energy-saving operation and to provide optimal control of airflow.

...
Auto Swing

Possibility to select automatic vertical moving of the air discharge flaps for efficient air and temperature distribution throughout the room.

...
Ceiling Soiling Prevention

Prevents air from blowing against the ceiling to prevent ceiling stains.

...
Individual Airflow Direction Control*1

Airflow direction can be individually adjusted for each air discharge outlet to deliver optimal air distribution. *1. This function can only be set via wired remote controller BRC1E63
