Refrigerant | R410A |

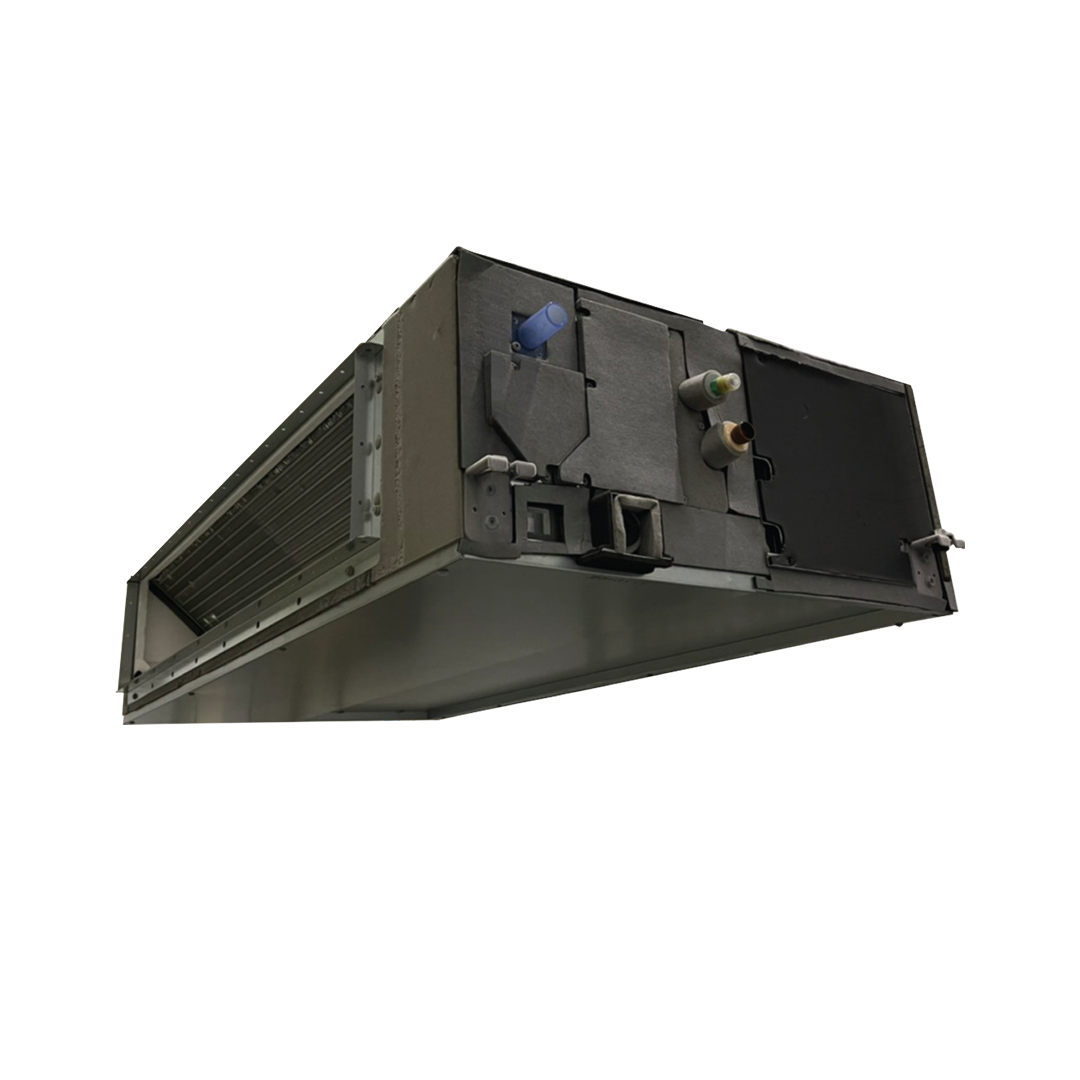

Our outdoor air processing units are able to pre-condition the outside air to deliver a variable discharge air temperature by controlling the room air temperature to suit your needs. The outdoor air processing unit can be operated as a single Heat Pump system or combined as part of a standard VRV Heat Pump or Heat Recovery solution.

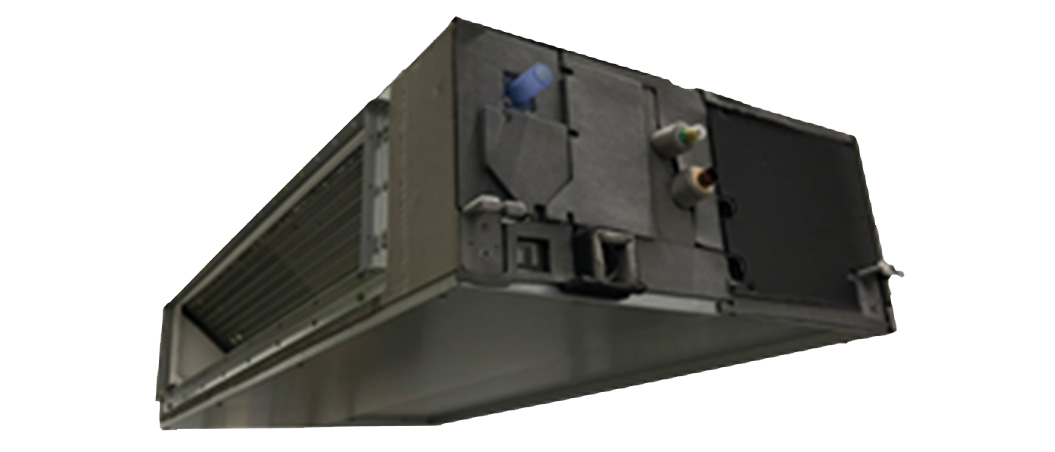

FXMQ-AFVM Flyer here
![](http://www.daikin.co.nz/cdn/shop/files/FXMQ-AFVM.png?v=1680489773)
Technical Specifications / Documents
(BIM) Engineering Data Links | Capacity | Air Flow (IU) | Max ESP | Dimensions (IU) | Weight | ||||
---|---|---|---|---|---|---|---|---|---|
Indoor Unit | (kg) | ||||||||
(kW) | (kW) | (kW) | (mm) | (mm) | (mm) | IU | |||
FXMQ80AFVM | 9.0 | - | 8.1 | 192 | 200 | 300 | 700 | 700 | 29 |
FXMQ100AFVM | - | - | - | - | - | - | - | - | - |
FXMQ140AFVM | 16.0 | - | 14.0 | 342 | 200 | 300 | 1000 | 700 | 37 |
FXMQ200AFVM | 22.4 | - | 22.4 | 483 | 200 | 300 | 1000 | 700 | 47 |
FXMQ250AFVM | 28.0 | - | 28.0 | 600 | 200 | 300 | 1400 | 700 | 48 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
![...](http://www.daikin.co.nz/cdn/shop/files/FXMQ-AFVM.png?v=1680489773)
![...](http://www.daikin.co.nz/cdn/shop/files/ultra_compact_5b9fa7bd-4328-48b9-ae05-0b9192f65ba0.png?v=1677077860)
Slim and Compact Design
Only 300 mm in height and 700 mm in depth, the new casing comes with smaller footprint and with 59% reduction** in unit size. **Reduction in size compared to conventional FXMQ200/250MF series.
![...](http://www.daikin.co.nz/cdn/shop/files/small_dimensions.png?v=1677376062)
Additional New Small Capacity Model
The new 9 kW capacity model is the perfect fit for smaller business such as small/medium-sized shops and convenience stores.
![...](http://www.daikin.co.nz/cdn/shop/files/High_External_Static_Pressure.png?v=1687231856)
Adjustable External Static Pressure
Using a DC fan motor, the external static pressure can be controlled within a range of 50 Pa to 200 Pa.
![...](http://www.daikin.co.nz/cdn/shop/files/built_in_condensate_pump_0.png?v=1677143872)
Built-in Drain Pump
Provides lift of up to 700mm. Powered directly from the indoor unit PCB.
![...](http://www.daikin.co.nz/cdn/shop/files/MERV8.png?v=1688424460)
High Efficiency Filter Option (MERV8/MERV14)
The filter options of MERV8 and MERV14 are available. *The high efficiency filter can help remove infectious aerosol in the air. *Filter chamber is required.
