| Refrigerant | R410A |
Daikin Premium Inverter provides superior comfort in next to no time.
Engineered to deliver remarkable energy performance, design flexibility and R22 retrofit capability, the Premium Inverter Ducted range is perfect for providing discreet air conditioned comfort throughout your entire home
Ducted Brochure here
Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.
Technical Specifications / Documents
| System Name | (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Max Pipe Length | Level Difference | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | OU-IU | OU-IU | (kg) | |||||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | (mm) | (m) | IU | OU | ||||

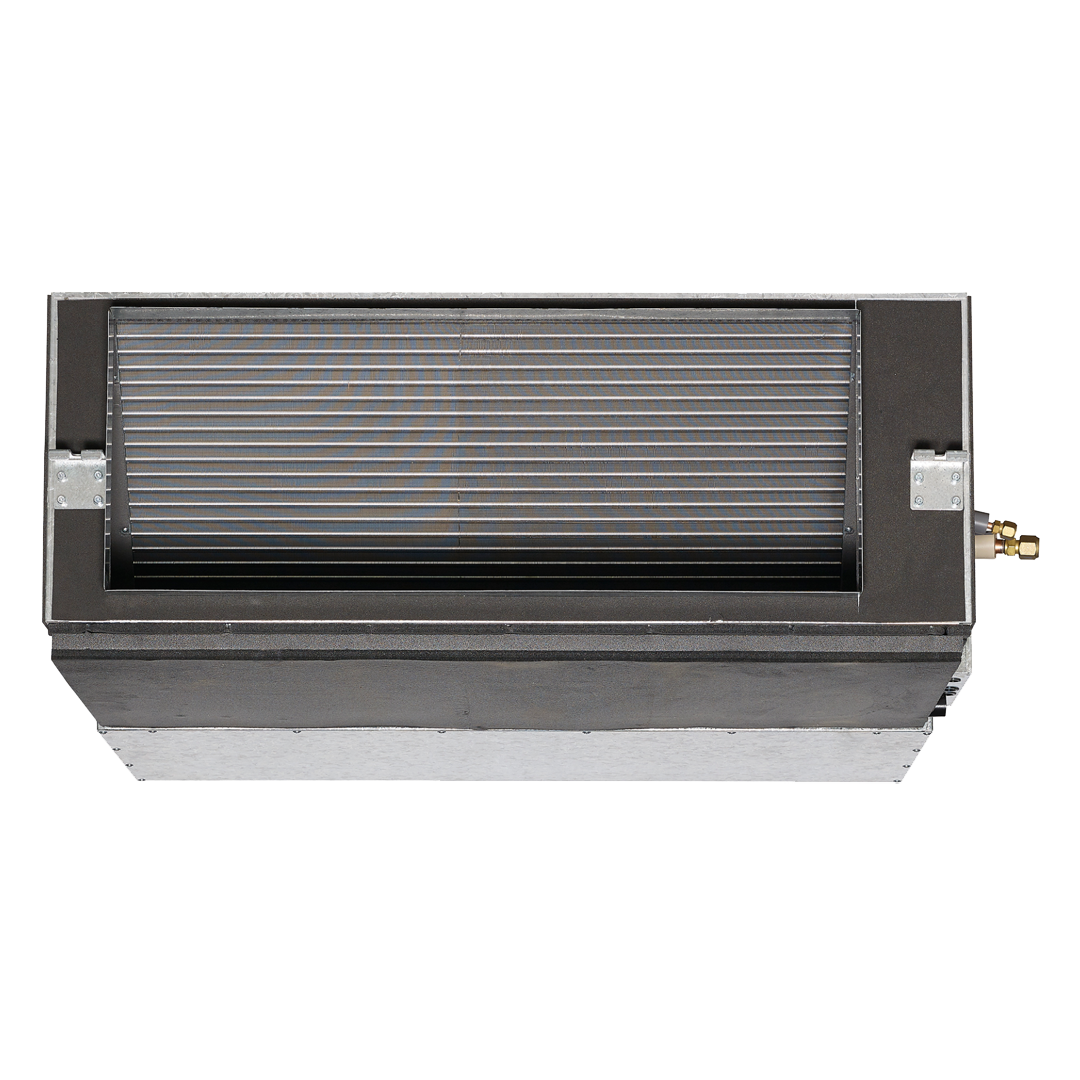

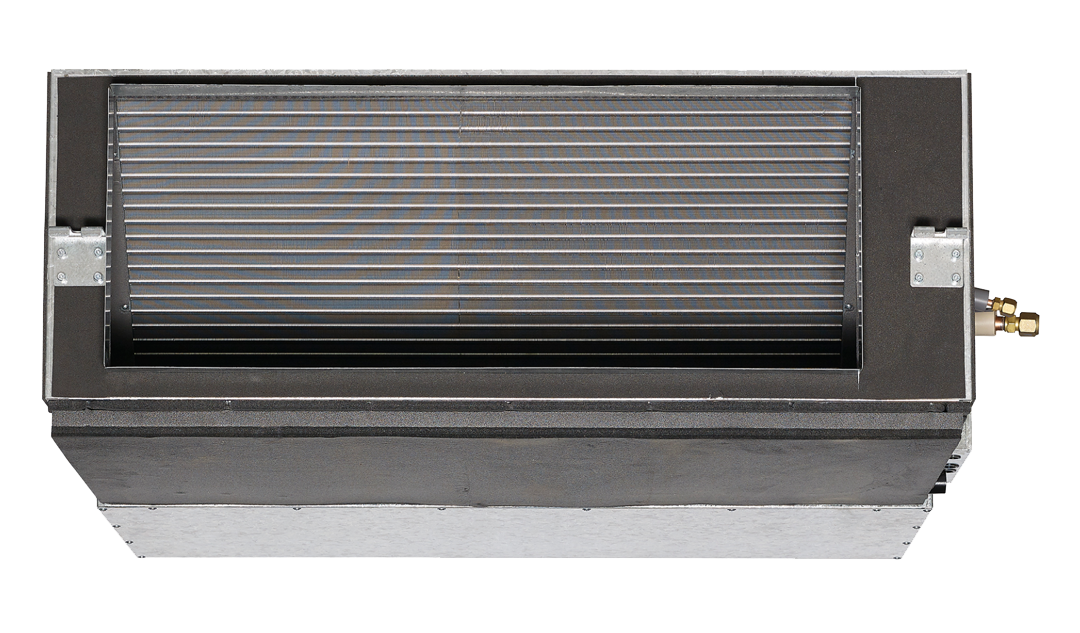

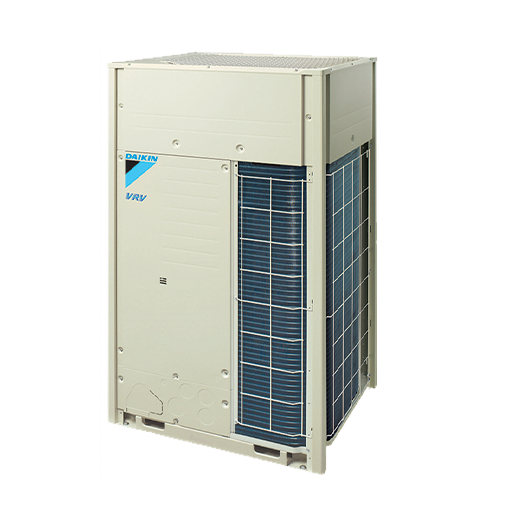

| FDYQ180LC-TAY | FDYQ180LCV1 | RZYQ7TAY1 | 18.0 | 15.2 | 20.0 | 1160 | 470 | 1200 | 997 | 165 | 40 (50) | 70 | 192 |
| FDYQ200LC-TAY | FDYQ200LCV1 | RZYQ8TAY1 | 20.0 | 16.2 | 22.4 | 1200 | 470 | 1400 | 997 | 165 | 40 (50) | 79 | 192 |
| FDYQ250LC-TAY | FDYQ250LCV1 | RZYQ10TAY1 | 24.0 | 17.8 | 26.8 | 1400 | 470 | 1400 | 997 | 165 | 40 (50) | 85 | 203 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Industry Leading Energy Performance
Achieved with a redesigned cross-pass heat exchanger, DC fan motor and improved refrigerant control technology.
Night Time Quiet Mode
Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
Australian Made
Indoor units are specifically designed and manufactured to Australian and New Zealand standards.
R22 Retrofit Capability
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (not available for Heating Focus models).
Increased Operation Limits
The refrigerant cooled PCB technology incorporated in the outdoor unit enables continuous operations up to 50°CDB ambient.
Heating Focus Option
Heating Focus models are available from 18.0-24.0kW with improved heating performance, ideal for cold climates in New Zealand.
Controller Features
Backlit Display
Clear large, easy to read text with a intuitive interface.
Weekly Schedule Timer
Program on and off times to suit your lifestyle.
Home Leave Function
Automatically turns your air conditioner on when the room temperatures drops below 10°C.
Quick Cool/Heat Mode
Temporarily increase air conditioning power to rapidly reach your desired set point temperature.
Temperature Limit
Predefine a temperature range for cooling or heating cycles for reduced energy consumption.
Off Timer Feature
Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).
Countdown On/Off Timer
Quick and easy means to set up the operations of your unit.
Backlit Display
Clear large, easy to read text with a intuitive interface.
Multiple Zone Control
Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)
7 Day Time Clock
Program on and off times, including when to open/close zones and the temperature sensor to use.
Automatic Mode Changeover
Allows the unit to automatically switch between heating and cooling for year round comfort.
Filter Cleaning Reminder
Automatic notification when filter cleaning may be required.
Operation Mode Theming
Each operation is colour-coded for easy association
Zone On / Off
Turn on or off the zones in your home (requires Zone Controller)
Enter Zone Names
Customize the name of the zones through your home. (Zone Controller Required)
Countdown On/Off Timer
Quick and easy means to set up the operations of your unit.
Filter Cleaning Reminder
Automatic notification when filter cleaning may be required.
Multiple Zone Control
Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)
2 Colours
Available in two attractive colours, the new remote controller adds style and sophistication to nay indoor space. Measuring just 85 x 85 mm, the remote controller is extremely compact and will become a fluid part of any background.
Sleek Stylish Design
Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.
User Friendly Interface
The new remote controller combines functionality and simplicity. The minimalistic touch button control enlarges the display and makes the remote controller both easy and enjoyable to use.
Daikin App for Installer
Simplifies the advanced settings such as field settings and set point range.
Touch Controllers
Featuring premium aesthetic design with intuitive touch screen interfaces for ease of use. Available in 3 models: Blueface, Think and Lite.
Q-Adapt Algorithm
The controller automatically selects the appropriate fan speed (L/M/H) depending on number of zones opened and the demand, resulting in reduced running costs.
Scalable Design
Up to 10 zones can be controlled via a single VAF system and coupled with a simple control architecture this makes scalability and installation convenient. *A BRC1E63 (Nav Ease) will also be required for backup and servicing
Individual Temperature Control
The 4-step linear dampers precisely regulate airflow into each zone ensuring optimal temperatures for all occupants in the household at anytime.
Touch Operation
7" colour resistive touch screen interface housed in a contemporary casing design with a matte white finish.
On/Off Timer
Program on and off times within the day to suit your needs.
Two Versions
Both On/Off or Linear Control options available in either a 4 or 8 zone design
Weekly Schedule Timer
Weekly Schedule Timer with individual zone timer, for programming the system and individual zones on or off at set times of the week.
Optional Wireless Sensors
Optional wireless remote temperature sensors, ideal for homes with internal brick walls.
Eco Settings
Eco Settings such as Set Range Limit, Setpoint Auto Reset and Auto Off Timer enables you to easily reduce your ducted system's energy consumption.
*All Controllers are optional & separately sold.
