| Refrigerant | R410A |

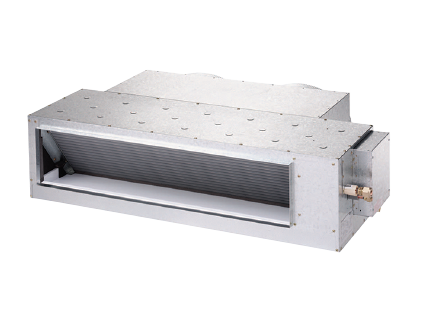

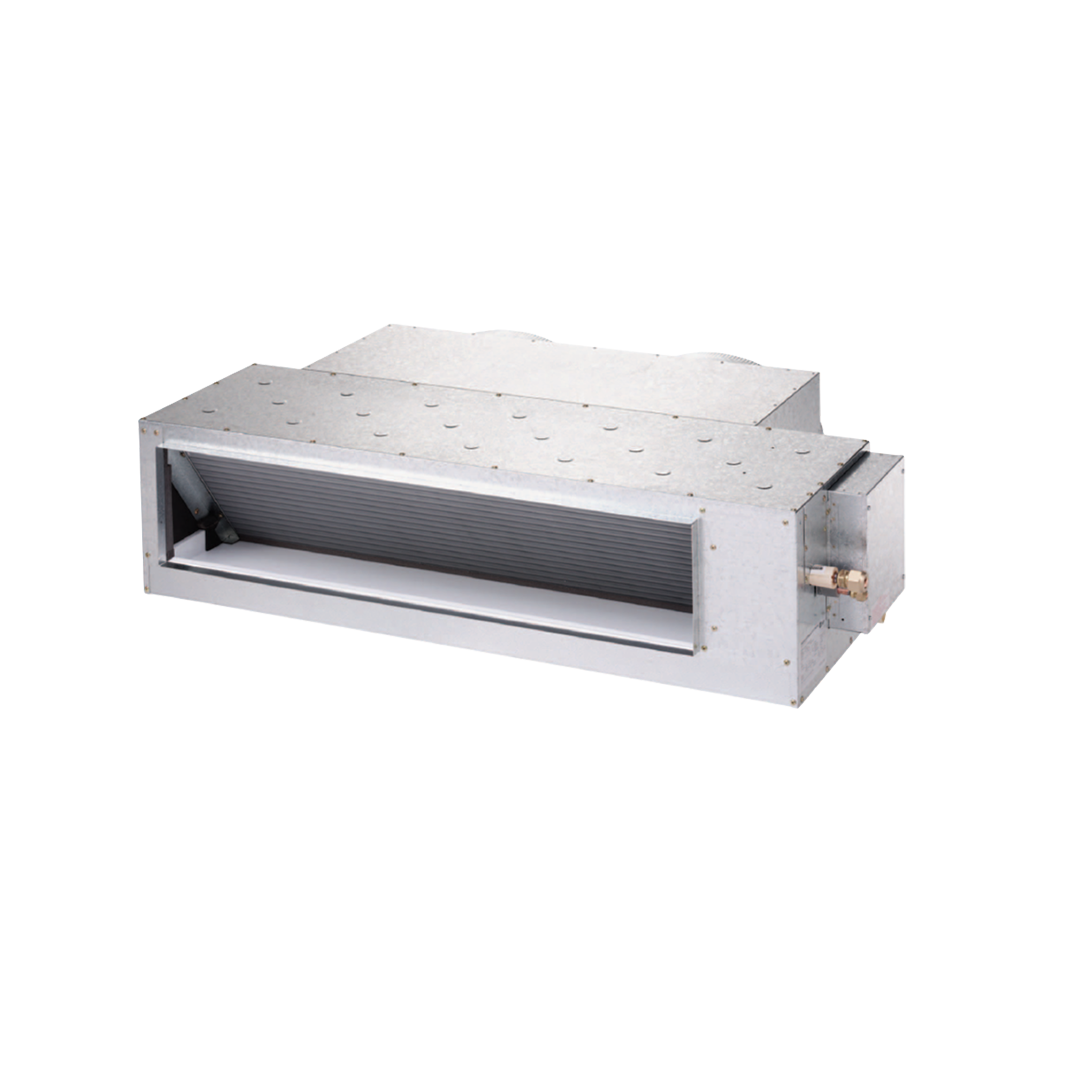

The FXDYQ-MAV1 series are high static, high sensible ducted units that allow for greater flexibility when designing duct layouts. The indoor unit can also be separated into two segments for convenient handling and facilitate easier installation through openings in the ceiling.
Technical Specifications / Documents
| (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Weight | ||||
|---|---|---|---|---|---|---|---|---|
| Indoor Unit | (kg) | |||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | IU | ||
| FXDYQ80MAV1 | 8.8 | - | 9.9 | 510 | 360 | 1168 | 869 | 50 |
| FXDYQ100MAV1 | 11.2 | - | 12.5 | 778 | 360 | 1478 | 869 | 60 |
| FXDYQ125MAV1 | 13.9 | - | 16.0 | 852 | 360 | 1478 | 869 | 65 |
| FXDYQ145MAV1 | 16.0 | - | 18.4 | 957 | 360 | 1478 | 869 | 66 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Energy Saving
High efficiency Hi-X heat exchanger coils that provide even more energy savings.
Powerful Fan
Quiet yet powerful supply air fan
Added Flexibility
Two external static pressure settings for added flexibility. High external static pressure of 120 Pa allows comprehensive duct layout for various applications.
Ease of Installation
Return air spigots included for ease of installation.
Steel Casing
High strength galvanised steel casing.
