Refrigerant | R32 |
The HSP Single Split Ducted has a depth of only 700mm and is specially designed with New Zealand homes in mind.
Ducted Brochure here
![...](http://www.daikin.co.nz/cdn/shop/files/5_Year_Warranty_-_NEW-08_c63d18a9-b95d-4584-adfc-ef0a9b9d14ef.png?v=1682736268)
Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.
![](http://www.daikin.co.nz/cdn/shop/files/FDMA_modern_residential_product_image.png?v=1677143844)
Technical Specifications / Documents
System Name | (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Max Pipe Length | Level Difference | Weight | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Indoor Unit | Outdoor Unit | OU-IU | OU-IU | (kg) | |||||||||
(kW) | (kW) | (kW) | (mm) | (mm) | (mm) | (mm) | (m) | IU | OU | ||||
Premium FDMA Ducted (R32) Single Phase | |||||||||||||
FDMA71A-VCV | FDMA71AV1A | RZAV71CV1 | 7.1 | 5.5 | 8.0 | 300 | 300 | 1000 | 700 | 75 | 30 | 36 | 69 |
FDMA85A-VCV | FDMA85AV1A | RZAV85CV1 | 8.5 | 7.0 | 10.0 | 533 | 300 | 1400 | 700 | 75 | 30 | 46 | 78 |
FDMA100A-VFV | FDMA100AV1A | RZAV100FV1 | 10.0 | 7.8 | 11.2 | 533 | 300 | 1400 | 700 | 85 | 30 | 46 | 93 |
FDMA125A-VFV | FDMA125AV1A | RZAV125FV1 | 12.5 | 9.2 | 14.0 | 650 | 300 | 1400 | 700 | 85 | 30 | 46 | 95 |
FDMA140A-VFV | FDMA140AV1A | RZAV140FV1 | 14.0 | 10.1 | 16.0 | 650 | 300 | 1400 | 700 | 85 | 30 | 46 | 95 |
Premium FDMA Ducted (R32) Three Phase | |||||||||||||
FDMA100A-VFY | FDMA100AV1A | RZAV100FY1 | 10.0 | 7.8 | 11.2 | 533 | 300 | 1400 | 700 | 85 | 30 | 46 | 93 |
FDMA125A-VFY | FDMA125AV1A | RZAV125FY1 | 12.5 | 9.2 | 14.0 | 650 | 300 | 1400 | 700 | 85 | 30 | 46 | 95 |
FDMA140A-VFY | FDMA140AV1A | RZAV140FY1 | 14.0 | 10.1 | 16.0 | 650 | 300 | 1400 | 700 | 85 | 30 | 46 | 95 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
![...](http://www.daikin.co.nz/cdn/shop/files/FDMA85-140AV1A_W1400-01_2.png?v=1677143844)
![...](http://www.daikin.co.nz/cdn/shop/files/ultra_compact_5b9fa7bd-4328-48b9-ae05-0b9192f65ba0.png?v=1677077860)
Compact Indoor Unit
With a depth of 700mm, Daikin’s new HSP Single Split ducted is suitable for New Zealand homes with narrower trusses (approx. 800mm) and light commercial applications
![...](http://www.daikin.co.nz/cdn/shop/files/built_in_condensate_pump_0.png?v=1677143872)
Built-in Drain Pump
Built-in drain pump as standard
![...](http://www.daikin.co.nz/cdn/shop/files/Air_flow_rate.png?v=1677143872)
Automatic Airflow Adjustment
Airflow rate auto adjustment function
![...](http://www.daikin.co.nz/cdn/shop/files/auto_fan_speed_1.png?v=1677072395)
Fan Speed
Switchable fan speed: 3 steps and Auto

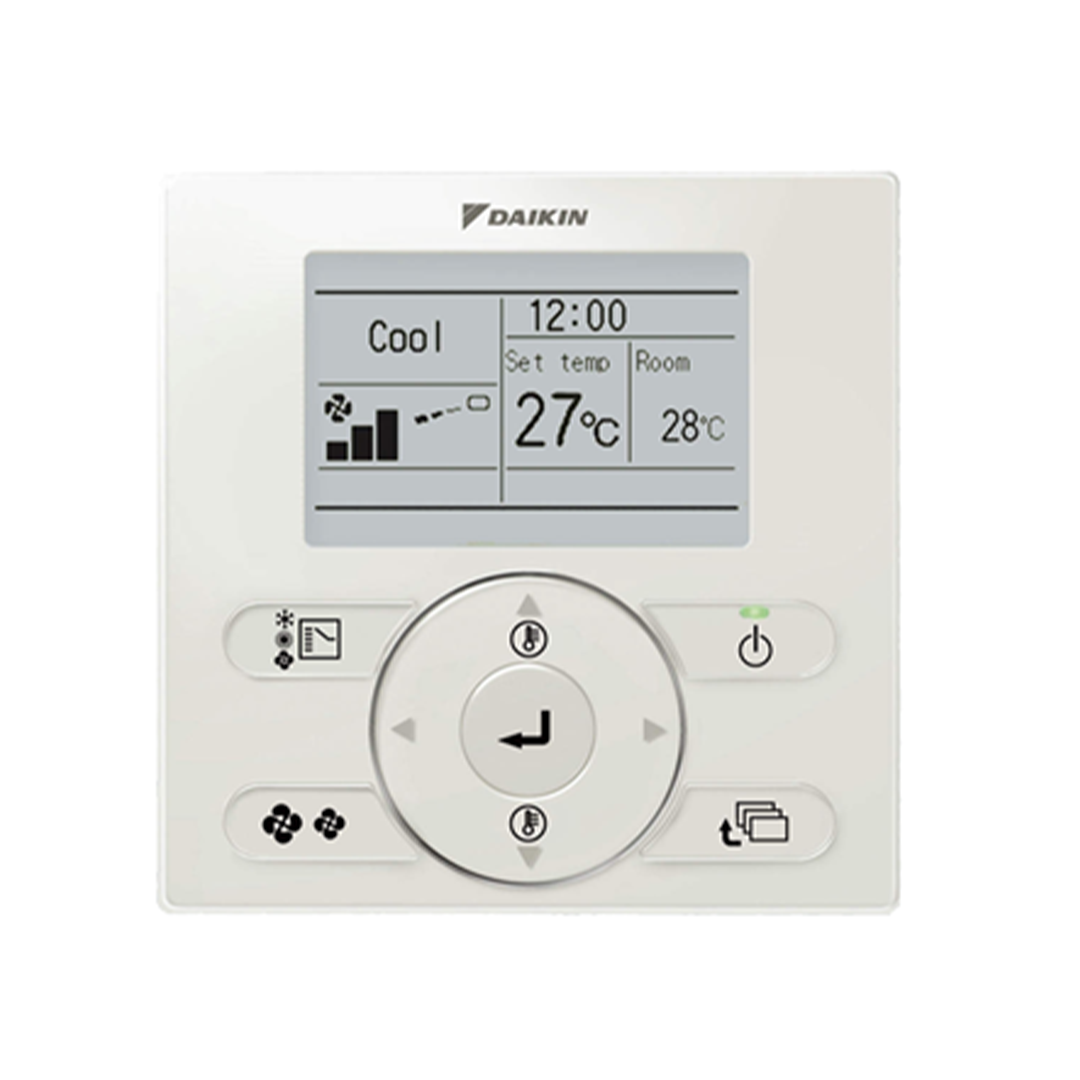

Controller Features
![...](http://www.daikin.co.nz/cdn/shop/files/nav_ease_controller.png?v=1675687577)
![...](http://www.daikin.co.nz/cdn/shop/files/Sub_zone_controller_-_BRCSZC1_9d4d2cf5-a713-4c96-b3c3-76cf55e76517.png?v=1705258803)
![...](http://www.daikin.co.nz/cdn/shop/files/Stylish_Controllers_-_Black_White.png?v=1687473020)
![...](http://www.daikin.co.nz/cdn/shop/files/daikin_airbase.png?v=1677143828)
![...](http://www.daikin.co.nz/cdn/shop/files/Airzone.png?v=1705453857)
![...](http://www.daikin.co.nz/cdn/shop/files/backlit-display.png?v=1675235307)
Backlit Display
Clear large, easy to read text with a intuitive interface.
![...](http://www.daikin.co.nz/cdn/shop/files/weekly_schedule_timer-icon.png?v=1677143873)
Weekly Schedule Timer
Program on and off times to suit your lifestyle.
![...](http://www.daikin.co.nz/cdn/shop/files/home_leave_function.png?v=1677143872)
Home Leave Function
Automatically turns your air conditioner on when the room temperatures drops below 10°C.
![...](http://www.daikin.co.nz/cdn/shop/files/quick_cool_heat_mode.png?v=1677143873)
Quick Cool/Heat Mode
Temporarily increase air conditioning power to rapidly reach your desired set point temperature.
![...](http://www.daikin.co.nz/cdn/shop/files/temperature_limit.png?v=1677143873)
Temperature Limit
Predefine a temperature range for cooling or heating cycles for reduced energy consumption.
![...](http://www.daikin.co.nz/cdn/shop/files/off_timer_feature.png?v=1677143872)
Off Timer Feature
Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).
![...](http://www.daikin.co.nz/cdn/shop/files/countdown_on_off_timer__1.png?v=1677143872)
Countdown On/Off Timer
Quick and easy means to set up the operations of your unit.
![...](http://www.daikin.co.nz/cdn/shop/files/backlit_display.png?v=1677143872)
Backlit Display
Clear large, easy to read text with a intuitive interface.
![...](http://www.daikin.co.nz/cdn/shop/files/multiple_zone_control.png?v=1677143872)
Multiple Zone Control
Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)
![...](http://www.daikin.co.nz/cdn/shop/files/7_day_time_clock.png?v=1677143872)
7 Day Time Clock
Program on and off times, including when to open/close zones and the temperature sensor to use.
![...](http://www.daikin.co.nz/cdn/shop/files/automatic_operation.png?v=1677072214)
Automatic Mode Changeover
Allows the unit to automatically switch between heating and cooling for year round comfort.
![...](http://www.daikin.co.nz/cdn/shop/files/filter_cleaning_reminder.png?v=1677143872)
Filter Cleaning Reminder
Automatic notification when filter cleaning may be required.
![...](http://www.daikin.co.nz/cdn/shop/files/2_colours_42a48af3-73a1-4c1c-a88f-5519c9f9e0e7.png?v=1687752288)
2 Colours
Available in two attractive colours, the new remote controller adds style and sophistication to nay indoor space. Measuring just 85 x 85 mm, the remote controller is extremely compact and will become a fluid part of any background.
![...](http://www.daikin.co.nz/cdn/shop/files/Stylish_Design.png?v=1687751014)
Sleek Stylish Design
Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.
![...](http://www.daikin.co.nz/cdn/shop/files/User_Friendly_Interface.png?v=1686520146)
User Friendly Interface
The new remote controller combines functionality and simplicity. The minimalistic touch button control enlarges the display and makes the remote controller both easy and enjoyable to use.
![...](http://www.daikin.co.nz/cdn/shop/files/App.png?v=1687751173)
Daikin App for Installer
Simplifies the advanced settings such as field settings and set point range.
![...](http://www.daikin.co.nz/cdn/shop/files/Operation_Mode_Theming.png?v=1688334094)
Operation Mode Theming
Each operation is colour-coded for easy association
![...](http://www.daikin.co.nz/cdn/shop/files/Zone_on_and_off.png?v=1688100620)
Zone On / Off
Turn on or off the zones in your home (requires Zone Controller)
![...](http://www.daikin.co.nz/cdn/shop/files/multiple_zone_control.png?v=1677143872)
Enter Zone Names
Customize the name of the zones through your home. (Zone Controller Required)
![...](http://www.daikin.co.nz/cdn/shop/files/countdown_on_off_timer__1.png?v=1677143872)
Countdown On/Off Timer
Quick and easy means to set up the operations of your unit.
![...](http://www.daikin.co.nz/cdn/shop/files/filter_cleaning_reminder.png?v=1677143872)
Filter Cleaning Reminder
Automatic notification when filter cleaning may be required.
![...](http://www.daikin.co.nz/cdn/shop/files/multiple_zone_control.png?v=1677143872)
Multiple Zone Control
Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)
![...](http://www.daikin.co.nz/cdn/shop/files/User_Friendly_Interface.png?v=1686520146)
Touch Operation
7" colour resistive touch screen interface housed in a contemporary casing design with a matte white finish.
![...](http://www.daikin.co.nz/cdn/shop/files/countdown_on_off_timer__1.png?v=1677143872)
On/Off Timer
Program on and off times within the day to suit your needs.
![...](http://www.daikin.co.nz/cdn/shop/files/2_versions_0.png?v=1677143872)
Two Versions
Both On/Off or Linear Control options available in either a 4 or 8 zone design
![...](http://www.daikin.co.nz/cdn/shop/files/weekly_schedule_timer-icon.png?v=1677143873)
Weekly Schedule Timer
Weekly Schedule Timer with individual zone timer, for programming the system and individual zones on or off at set times of the week.
![...](http://www.daikin.co.nz/cdn/shop/files/Built-in_wifi.png?v=1677043896)
Optional Wireless Sensors
Optional wireless remote temperature sensors, ideal for homes with internal brick walls.
![...](http://www.daikin.co.nz/cdn/shop/files/eco_settings_0.png?v=1677143873)
Eco Settings
Eco Settings such as Set Range Limit, Setpoint Auto Reset and Auto Off Timer enables you to easily reduce your ducted system's energy consumption.
*All Controllers are optional & separately sold.
Contact a Daikin Sales Engineer
A Daikin Sales Engineer will assess and plan the right air conditioning solution for you, with creativity and sensitivity to the needs of your family or business.
