Refrigerant | R32 |

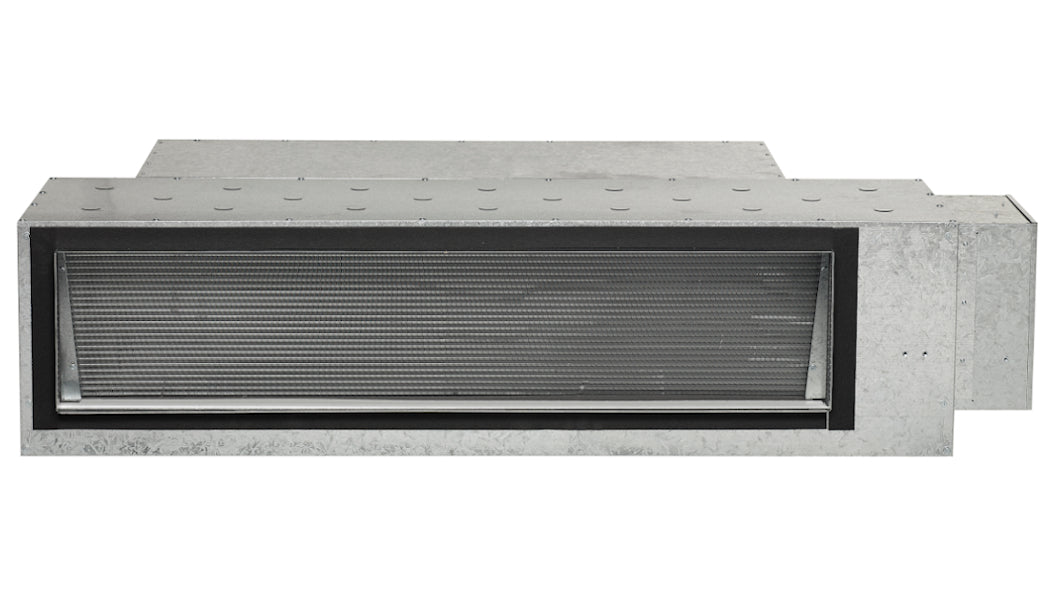

Engineered to deliver a compact and efficient design, our Inverter series is ideal for installation into the tight roof space of any modern home and now also features R22 retrofit capability for 5.0-15.5kW models.
Ducted Brochure here
![...](http://www.daikin.co.nz/cdn/shop/files/5_Year_Warranty_-_NEW-08_c63d18a9-b95d-4584-adfc-ef0a9b9d14ef.png?v=1682736268)
Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.
![](http://www.daikin.co.nz/cdn/shop/files/inverter_ducted_product_image.jpg?v=1677143839)
Technical Specifications / Documents
System Name | (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Max Pipe Length | Level Difference | Weight | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Indoor Unit | Outdoor Unit | OU-IU | OU-IU | (kg) | |||||||||
(kW) | (kW) | (kW) | (mm) | (mm) | (mm) | (mm) | (m) | IU | OU | ||||
Inverter (R32) Single Phase | |||||||||||||
FDYAN50A-CV | FDYAN50AV1 | RZA50CV1 | 5.0 | 3.6 | 6.0 | 370 | 300 | 1210 | 900 | 50 | 30 | 37 | 45 |
FDYAN60A-CV | FDYAN60AV1 | RZA60CV1 | 6.0 | 4.2 | 7.0 | 400 | 300 | 1210 | 900 | 50 | 30 | 37 | 45 |
FDYAN71A-CV | FDYAN71AV1 | RZA71CV1 | 7.1 | 5.7 | 7.5 | 566 | 300 | 1210 | 900 | 50 | 30 | 40 | 45 |
FDYAN85A-CV | FDYAN85AV1 | RZA85CV1 | 8.5 | 7.1 | 10.0 | 600 | 300 | 1210 | 900 | 50 | 30 | 40 | 69 |
FDYAN100A-CV | FDYAN100AV1 | RZA100CV1 | 10.0 | 8.0 | 12.5 | 800 | 300 | 1210 | 900 | 50 | 30 | 45 | 69 |
FDYAN125A-CV | FDYAN125AV1 | RZA125CV1 | 12.5 | 10.0 | 15.0 | 840 | 300 | 1520 | 935 | 50 | 30 | 55 | 78 |
FDYAN140A-CV | FDYAN140AV1 | RZA140CV1 | 14.0 | 11.3 | 16.5 | 1000 | 300 | 1520 | 935 | 50 | 30 | 55 | 93 |
FDYAN160A-CV | FDYAN160AV1 | RZA160CV1 | 15.5 | 11.8 | 18.0 | 1120 | 300 | 1520 | 935 | 50 | 30 | 56 | 99 |
Inverter (R32) Three Phase | |||||||||||||
FDYAN71A-CY | FDYAN71AV1 | RZA71CY1 | 7.1 | 5.7 | 7.5 | 566 | 300 | 1210 | 900 | 50 | 30 | 40 | 69 |
FDYAN85A-CY | FDYAN85AV1 | RZA85CY1 | 8.5 | 7.1 | 10.0 | 600 | 300 | 1210 | 900 | 50 | 30 | 40 | 69 |
FDYAN100A-CY | FDYAN100AV1 | RZA100CY1 | 10.0 | 8.0 | 12.5 | 800 | 300 | 1210 | 900 | 50 | 30 | 45 | 69 |
FDYAN125A-CY | FDYAN125AV1 | RZA125CY1 | 12.5 | 10.0 | 15.0 | 840 | 360 | 1520 | 935 | 50 | 30 | 55 | 78 |
FDYAN140A-CY | FDYAN140AV1 | RZA140CY1 | 14.0 | 11.3 | 16.5 | 1000 | 360 | 1520 | 935 | 50 | 30 | 55 | 93 |
FDYAN160A-CY | FDYAN160AV1 | RZA160CY1 | 15.5 | 11.8 | 18.0 | 1120 | 360 | 1520 | 935 | 50 | 30 | 55 | 99 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
![...](http://www.daikin.co.nz/cdn/shop/files/inverter_ducted_key_features_indoor.png?v=1677143838)
![...](http://www.daikin.co.nz/cdn/shop/files/inverter_dudted_key_features_outdoor.png?v=1677143837)
![...](http://www.daikin.co.nz/cdn/shop/files/eco_settings_0.png?v=1677143873)
Improved Energy Efficiency
Achieved through the use of a DC Fan motor, cross-pass heat exchanger and increased outdoor coil passes.
![...](http://www.daikin.co.nz/cdn/shop/files/night_quiet_mode.png?v=1677143873)
Night Time Quiet Mode
Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
![...](http://www.daikin.co.nz/cdn/shop/files/australian_made.png?v=1677143872)
Australian Made
Indoor units are specifically designed and manufactured to Australian and New Zealand standards.
![...](http://www.daikin.co.nz/cdn/shop/files/ultra_compact_5b9fa7bd-4328-48b9-ae05-0b9192f65ba0.png?v=1677077860)

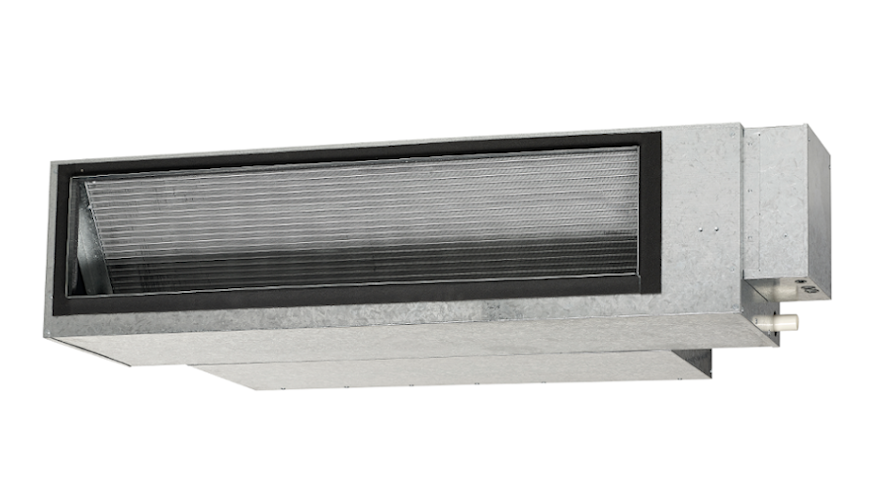

Compact Indoor Unit
Low profile height of ≤360mm to fit comfortably into the tight roof space of a modern home.
![...](http://www.daikin.co.nz/cdn/shop/files/space_saving_outdoor_unit_01.png?v=1677143872)
pace Saving Outdoor Unit
Models up to 19.5kW are encased in a space saving side discharge outdoor unit allowing for flexible placement.
![...](http://www.daikin.co.nz/cdn/shop/files/R22_retrofit_capability_01.png?v=1677143872)
R22 Retrofit Capability
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (5.0-15.5kW Models).
![...](http://www.daikin.co.nz/cdn/shop/files/FDYQN_lifestyle_image_1.png?v=1675687624)
![...](http://www.daikin.co.nz/cdn/shop/files/FDYQN_lifestyle_image_2.png?v=1675687624)
![...](http://www.daikin.co.nz/cdn/shop/files/FDYQN_lifestyle_image_3.png?v=1675687624)
![...](http://www.daikin.co.nz/cdn/shop/files/FDYAN_lifestyle_image_2.jpg?v=1675915871)
![...](http://www.daikin.co.nz/cdn/shop/files/FDYAN_lifestyle_image_3.jpg?v=1675916746)
![...](http://www.daikin.co.nz/cdn/shop/files/FDYAN_lifestyle_image_4.jpg?v=1675916849)
Controller Features
![...](http://www.daikin.co.nz/cdn/shop/files/bibloc_0.png?v=1674668811)
![...](http://www.daikin.co.nz/cdn/shop/files/zone_controller_image.png?v=1677143830)
![...](http://www.daikin.co.nz/cdn/shop/files/daikin_airbase.png?v=1677143828)
![...](http://www.daikin.co.nz/cdn/shop/files/Stylish_Controller.png?v=1705454705)
![...](http://www.daikin.co.nz/cdn/shop/files/Airhub.png?v=1705453687)
![...](http://www.daikin.co.nz/cdn/shop/files/Airzone.png?v=1705453857)
![...](http://www.daikin.co.nz/cdn/shop/files/backlit-display.png?v=1675235307)
Backlit Display
Clear large, easy to read text with a intuitive interface.
![...](http://www.daikin.co.nz/cdn/shop/files/weekly-schedule-timer.png?v=1674668809)
Weekly Schedule Timer
Program on and off times to suit your lifestyle.
![...](http://www.daikin.co.nz/cdn/shop/files/home-leave-function.png?v=1674668809)
Home Leave Function
Automatically turns your air conditioner on when the room temperatures drops below 10°C.
![...](http://www.daikin.co.nz/cdn/shop/files/quick-cool-heat-mode.png?v=1674668808)
Quick Cool/Heat Mode
Temporarily increase air conditioning power to rapidly reach your desired set point temperature.
![...](http://www.daikin.co.nz/cdn/shop/files/temperature-limit.png?v=1674668809)
Temperature Limit
Predefine a temperature range for cooling or heating cycles for reduced energy consumption.
![...](http://www.daikin.co.nz/cdn/shop/files/off-timer-feature.png?v=1674668809)
Off Timer Feature
Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).
![...](http://www.daikin.co.nz/cdn/shop/files/countdown_on_off_timer__1.png?v=1677143872)
Countdown On/Off Timer
Quick and easy means to set up the operations of your unit.
![...](http://www.daikin.co.nz/cdn/shop/files/backlit-display.png?v=1675235307)
Backlit Display
Clear large, easy to read text with a intuitive interface.
![...](http://www.daikin.co.nz/cdn/shop/files/multiple_zone_control.png?v=1677143872)
Multiple Zone Control
Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)
![...](http://www.daikin.co.nz/cdn/shop/files/7_day_time_clock.png?v=1677143872)
7 Day Time Clock
Program on and off times, including when to open/close zones and the temperature sensor to use.
![...](http://www.daikin.co.nz/cdn/shop/files/automatic_operation.png?v=1677072214)
Automatic Mode Changeover
Allows the unit to automatically switch between heating and cooling for year round comfort.
![...](http://www.daikin.co.nz/cdn/shop/files/filter_cleaning_reminder.png?v=1677143872)
Filter Cleaning Reminder
Automatic notification when filter cleaning may be required.
![...](http://www.daikin.co.nz/cdn/shop/files/cool_on.gif?v=1677143872)
Operation Mode Theming
Each operation is colour-coded for easy association
![...](http://www.daikin.co.nz/cdn/shop/files/countdown_on_off_timer__1.png?v=1677143872)
Zone On / Off
Turn on or off the zones in your home (requires Zone Controller)
![...](http://www.daikin.co.nz/cdn/shop/files/multiple_zone_control.png?v=1677143872)
Enter Zone Names
Customize the name of the zones through your home. (Zone Controller Required)
![...](http://www.daikin.co.nz/cdn/shop/files/countdown_on_off_timer__1.png?v=1677143872)
Countdown On/Off Timer
Quick and easy means to set up the operations of your unit.
![...](http://www.daikin.co.nz/cdn/shop/files/filter_cleaning_reminder.png?v=1677143872)
Filter Cleaning Reminder
Automatic notification when filter cleaning may be required.
![...](http://www.daikin.co.nz/cdn/shop/files/multiple_zone_control.png?v=1677143872)
Multiple Zone Control
Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)
![...](http://www.daikin.co.nz/cdn/shop/files/2_colours_42a48af3-73a1-4c1c-a88f-5519c9f9e0e7.png?v=1687752288)
2 Colours
Available in two attractive colours, the new remote controller adds style and sophistication to nay indoor space. Measuring just 85 x 85 mm, the remote controller is extremely compact and will become a fluid part of any background.
![...](http://www.daikin.co.nz/cdn/shop/files/Stylish_Design.png?v=1687751014)
Sleek Stylish Design
Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.
![...](http://www.daikin.co.nz/cdn/shop/files/User_Friendly_Interface.png?v=1686520146)
User Friendly Interface
The new remote controller combines functionality and simplicity. The minimalistic touch button control enlarges the display and makes the remote controller both easy and enjoyable to use.
![...](http://www.daikin.co.nz/cdn/shop/files/App.png?v=1687751173)
Daikin App for Installer
Simplifies the advanced settings such as field settings and set point range.
![...](http://www.daikin.co.nz/cdn/shop/files/User_Friendly_Interface.png?v=1686520146)
Touch Controllers
Featuring premium aesthetic design with intuitive touch screen interfaces for ease of use. Available in 3 models: Blueface, Think and Lite.
![...](http://www.daikin.co.nz/cdn/shop/files/Icons_Q_Adapt_Algorithm.png?v=1715116748)
Q-Adapt Algorithm
The controller automatically selects the appropriate fan speed (L/M/H) depending on number of zones opened and the demand, resulting in reduced running costs.
![...](http://www.daikin.co.nz/cdn/shop/files/Icons_Scalable_Design.png?v=1715116748)
Scalable Design
Up to 10 zones can be controlled via a single VAF system and coupled with a simple control architecture this makes scalability and installation convenient. *A BRC1E63 (Nav Ease) will also be required for backup and servicing
![...](http://www.daikin.co.nz/cdn/shop/files/Icons_Individual_Temperature.png?v=1715116748)
Individual Temperature Control
The 4-step linear dampers precisely regulate airflow into each zone ensuring optimal temperatures for all occupants in the household at anytime.
![...](http://www.daikin.co.nz/cdn/shop/files/User_Friendly_Interface.png?v=1686520146)
Touch Operation
7" colour resistive touch screen interface housed in a contemporary casing design with a matte white finish.
![...](http://www.daikin.co.nz/cdn/shop/files/countdown_on_off_timer__1.png?v=1677143872)
On/Off Timer
Program on and off times within the day to suit your needs.
![...](http://www.daikin.co.nz/cdn/shop/files/2_versions_0.png?v=1677143872)
Two Versions
Both On/Off or Linear Control options available in either a 4 or 8 zone design
![...](http://www.daikin.co.nz/cdn/shop/files/weekly_schedule_timer-icon.png?v=1677143873)
Weekly Schedule Timer
Weekly Schedule Timer with individual zone timer, for programming the system and individual zones on or off at set times of the week.
![...](http://www.daikin.co.nz/cdn/shop/files/Built-in_wifi.png?v=1677043896)
Optional Wireless Sensors
Optional wireless remote temperature sensors, ideal for homes with internal brick walls.
![...](http://www.daikin.co.nz/cdn/shop/files/eco_settings_0.png?v=1677143873)
Eco Settings
Eco Settings such as Set Range Limit, Setpoint Auto Reset and Auto Off Timer enables you to easily reduce your ducted system's energy consumption.
*All Controllers are optional & separately sold.
