Refrigerant | R32 |

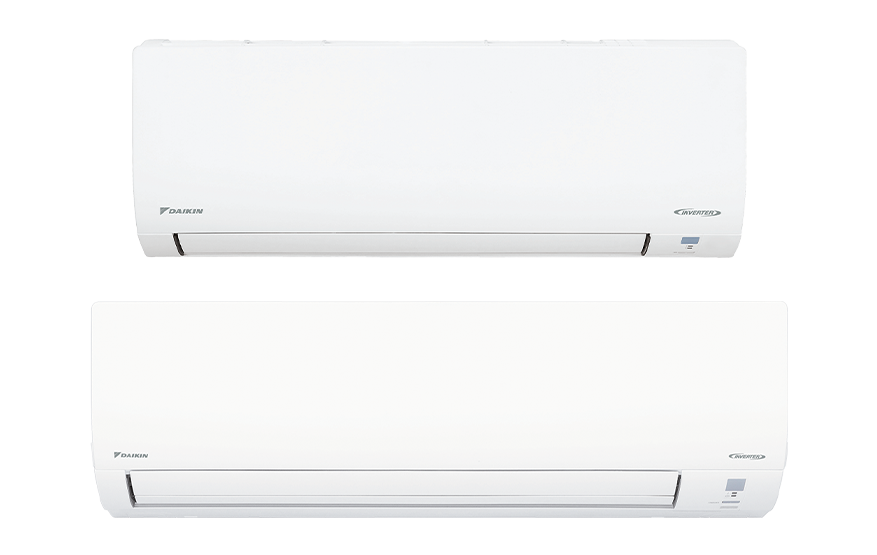

Featuring a contoured matte white flat panel design, intelligent eye, whisper quiet operations and an easy to use controller.
Lite Series Flyer here
![...](http://www.daikin.co.nz/cdn/shop/files/5_Year_Warranty_-_NEW-08_c63d18a9-b95d-4584-adfc-ef0a9b9d14ef.png?v=1682736268)
Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.
![](http://www.daikin.co.nz/cdn/shop/files/Lite_Series_Key_Features_Indoor.png?v=1677041207)
Technical Specifications / Documents
System Name | (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Max Pipe Length | Level Difference | Weight | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Indoor Unit | Outdoor Unit | OU-IU | OU-IU | (kg) | |||||||||
(kW) | (kW) | (kW) | (mm) | (mm) | (mm) | (mm) | (m) | IU | OU | ||||
FTXF25W | FTXF25WVMA | RXF25WVMA | 2.5 | 2.4 | 3.0 | 160 | 285 | 770 | 223 | 20 | 15 | 9 | 28 |
FTXF35W | FTXF35WVMA | RXF35WVMA | 3.5 | 2.8 | 3.7 | 173 | 285 | 770 | 223 | 20 | 15 | 9 | 28 |
FTXF50W | FTXF50WVMA | RXF50WVMA | 5.0 | 3.5 | 5.2 | 210 | 285 | 770 | 223 | 30 | 20 | 9 | 41 |
FTXF60W | FTXF60WVMA | RXF60WVMA | 6.0 | 3.6 | 6.5 | 313 | 295 | 990 | 263 | 30 | 20 | 12 | 41 |
FTXF71W | FTXF71WVMA | RXF71WVMA | 7.1 | 4.7 | 8.0 | 350 | 295 | 990 | 263 | 30 | 20 | 13 | 54 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
![...](http://www.daikin.co.nz/cdn/shop/files/Lite_Series_Key_Features_Indoor.png?v=1677041207)
![...](http://www.daikin.co.nz/cdn/shop/files/lite_series_key_features_outdoor.png?v=1677079569)
![...](http://www.daikin.co.nz/cdn/shop/files/ultra_compact_5b9fa7bd-4328-48b9-ae05-0b9192f65ba0.png?v=1677077860)
Compact Size
Utilising a range of new technologies including R32 as a refrigerant, a redesigned indoor heat exchanger with Ø5mm piping and a new large rotor cross-flow indoor fan has resulted in a more compact design for both the indoor and outdoor machines.
![...](http://www.daikin.co.nz/cdn/shop/files/ultra-quiet-operation.png?v=1676285941)
Whisper Quiet
Daikin’s W-Series is not just compact in size but also quiet in operations, featuring an Indoor Unit Quiet mode that reduces the indoor unit operational noise level down to 19dBA* to maintain room acoustics. (*Refers to 2.0kW, 2.5kW & 3.5kW model in cooling operation.)
![...](http://www.daikin.co.nz/cdn/shop/files/R32-Refrigerant_0.png?v=1677070012)
R32 Refrigerant
Enables increased energy efficiency and a significant reduction in 'Global Warming Potential Factor' - great for the environmentally conscious.
![...](http://www.daikin.co.nz/cdn/shop/files/lifestyle_convenience.png?v=1677080375)
Lifestyle Convenience
Features a simplified backlit wireless remote controller with precision temperature set point adjustment in 0.5°C increments and a built-in count up-down ON/OFF timer for convenient set and forget operations.
![...](http://www.daikin.co.nz/cdn/shop/files/air_purification.png?v=1677066260)
Air Purification (Optional)
Titanium apatite deodorising air purification filter traps microscopic particles, decomposes odours and even deactivates bacteria and viruses.
![...](http://www.daikin.co.nz/cdn/shop/files/W-Series_lifestyle_image_1.jpg?v=1677085996)
![...](http://www.daikin.co.nz/cdn/shop/files/Multi_Lite_Lifestlye_Image1.jpg?v=1683859958)
![...](http://www.daikin.co.nz/cdn/shop/files/Multi_Lite_Lifestlye_Image2.jpg?v=1683859974)

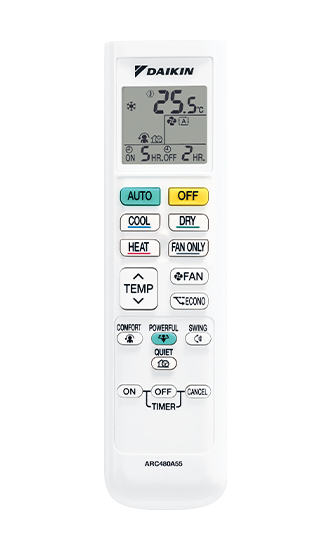

Controller Features
![...](http://www.daikin.co.nz/cdn/shop/files/ARC480A55.png?v=1677080728)
![...](http://www.daikin.co.nz/cdn/shop/files/WIFI_Controller_OPTIONAL.png?v=1677041199)
![...](http://www.daikin.co.nz/cdn/shop/files/backlit-display.png?v=1675235307)
On/Off Timer
Program on and off times within the day to suit your needs.
![...](http://www.daikin.co.nz/cdn/shop/files/centralised-control-wired.png?v=1675235307)
Quiet Mode
Operation sound levels are reduced by 2-3 dBA for quieter heating and cooling.
![...](http://www.daikin.co.nz/cdn/shop/files/individual-scheduling.png?v=1675235307)
Comfort Mode
Airflow is optimised to stream upwards during cooling and downwards during heating.
![...](http://www.daikin.co.nz/cdn/shop/files/one-touch-control-wired.png?v=1675235307)
Powerful Mode
Gives a boost in cooling or heating for 20 minutes beyond normal capacity.
![...](http://www.daikin.co.nz/cdn/shop/files/convenient-group-control.png?v=1675235307)
Program Dry Function
Automatic intelligent airflow and temperature control to reduce room humidity.
![...](http://www.daikin.co.nz/cdn/shop/files/outside-temperature-display-wired.png?v=1675235307)
Econo Mode
Power consumption of the system is limited to prevent tripping your circuit breaker.
![...](http://www.daikin.co.nz/cdn/shop/files/smartphone_control.png?v=1677060243)
Direct Connection
For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.
![...](http://www.daikin.co.nz/cdn/shop/files/smartphone_control.png?v=1677060243)
Internet Connection
All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.
![...](http://www.daikin.co.nz/cdn/shop/files/smartphone_control.png?v=1677060243)
Wi-Fi Connection
A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.
![](https://cdn.shopify.com/s/files/1/0598/3777/5929/files/T-Series_Exploded.jpg?v=1677041214)
LITE SERIES Technology
