| Refrigerant | R410A |

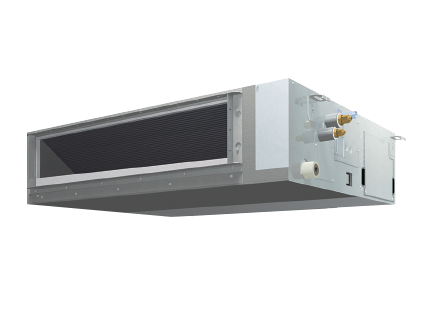

The FXSQ-PAVE series is designed to meet the construction challenges of modern commercial and medium density apartment development. Featuring industry leading low profile height of only 245mm for installation into tight ceiling space and Automatic Airflow Adjustment feature for simplified on-site commissioning.
FXSQ-P Flyer here
Technical Specifications / Documents
| (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Max ESP | Dimensions (IU) | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | (kg) | ||||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | IU | |||
| FXSQ20PAVE | 2.2 | 1.8 | 2.5 | 150 | 150 | 245 | 550 | 800 | 25 |
| FXSQ25PAVE | 2.8 | 2.2 | 3.2 | 150 | 150 | 245 | 550 | 800 | 25 |
| FXSQ32PAVE | 3.6 | 2.7 | 4.0 | 458 | 150 | 245 | 550 | 800 | 25 |
| FXSQ40PAVE | 4.5 | 3.7 | 5.0 | 250 | 150 | 245 | 700 | 800 | 27 |
| FXSQ50PAVE | 5.6 | 4.3 | 6.3 | 283 | 150 | 245 | 1000 | 800 | 35 |
| FXSQ63PAVE | 7.1 | 5.4 | 8.0 | 350 | 150 | 245 | 1000 | 800 | 35 |
| FXSQ80PAVE | 9.0 | 6.5 | 10.0 | 383 | 150 | 245 | 1000 | 800 | 7 |
| FXSQ100PAVE | 11.2 | 8.5 | 12.5 | 533 | 150 | 245 | 1400 | 800 | 46 |
| FXSQ125PAVE | 14.0 | 10.1 | 16.0 | 617 | 150 | 245 | 1400 | 800 | 47 |
| FXSQ140PAVE | 16.0 | 11.6 | 18.0 | 650 | 140 | 245 | 1550 | 800 | 52 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Design Flexibility
Using a DC fan motor, the external static pressure can be controlled within a range of 30 Pa* to 150 Pa.
Comfort
3-step fan speed and Auto are available for control of the airflow rate. Auto airflow rate control can be selected with wired remote controller (BRC1E63).
Flexible Installation
Slim Design with a height of only 245 mm, installation is possible even in buildings with narrow ceiling spaces. DC drain pump is equipped as standard accessory with 850 mm lift. Air suction direction can be altered from rear to bottom suction.
Automatic Airflow Adjustment
“Airflow rate auto adjustment function” at field setting (local setting by remote controller). *This function can only be set via wired remote controller.
Easy Maintenance
Inspection and cleaning is facilitated by separating the drain pipe and inspection opening and by the drain pan maintenance check hole.
