| Refrigerant | R410A |

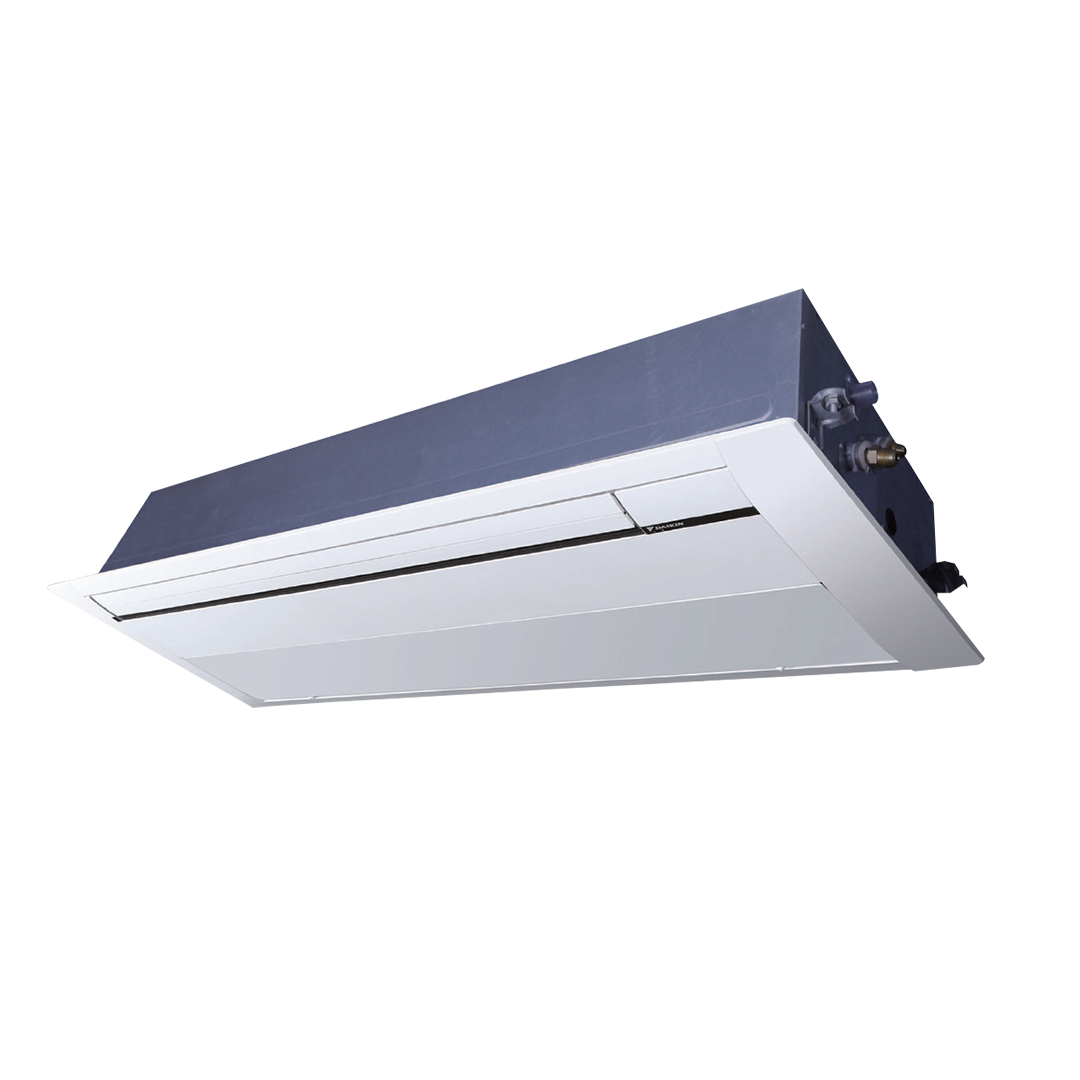

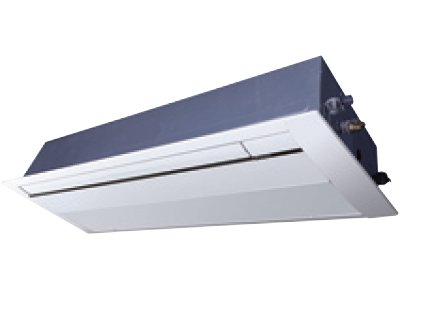

The FXEQ-AV36 series is a slim body, discreet single flow ceiling mounted cassette ideal for installation into tight ceiling spaces of as low as 255mm. Features include a DC fan motor with 5-step fan speed and automatic airflow, 3D Airflow function enabling vertical and horizontal auto-swing for effective air distribution and a built-in drain pump with 850mm lift.
FXEQ-AV36 Flyer here
Technical Specifications / Documents
| (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Weight | ||||
|---|---|---|---|---|---|---|---|---|
| Indoor Unit | (kg) | |||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | IU | ||
| FXEQ20AV36 | 2.2 | 1.9 | 2.5 | 100 | 200 | 840 | 470 | 17 |
| FXEQ25AV36 | 2.8 | 2.2 | 3.2 | 120 | 200 | 840 | 470 | 17 |
| FXEQ32AV37 | 3.6 | 2.7 | 4.0 | 143 | 200 | 840 | 470 | 17 |
| FXEQ40AV38 | 4.5 | 3.5 | 5.0 | 170 | 200 | 840 | 470 | 18 |
| FXEQ50AV39 | 5.6 | 4.2 | 6.3 | 233 | 200 | 1240 | 470 | 23 |
| FXEQ63AV40 | 7.1 | 5.3 | 8.0 | 281 | 200 | 1240 | 470 | 23 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Slim Design
The novel smooth panel design makes dust difficult to accumulate, thus causing the cleaning more conveniently.
Drain Pump Accessory
Drain pump is equipped as standard accessory with 850 mm lift.
Comfort
The swinging of horizontal and vertical swing flaps can be adjusted freely with the remote controller, providing 3D airflow to every corner of the room. Control of airflow rate can be selected from 5-stepcontrol, Automatic and quiet operation mode, which provides comfortable airflow. DC motor is adopted both in the fan and drain pump of the indoor unit, not only enhancing the energy saving performance, but also reducing the operating sound and the vibration incurred to the unit. While creating a cozy indoor environment, the unit can prevent the suspended ceiling from being soiled by adjusting its louvre angle.
Easy Maintenance
Maintenance operations can be performed by removing the front panel.
