| Refrigerant | R-1234ze |

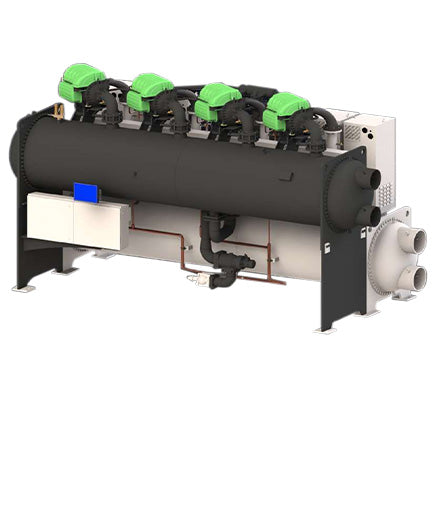

Magnetic bearing centrifugal chiller has been designed with oil free system, resulting in eliminating oil contamination in the refrigerant and heat transfer surfaces to provide outstanding operating efficiency without any performance penalty compared to conventional oil-system chiller.
Our magnetic bearing centrifugal chiller also integrates VFD technology. It allows the compressor to unload smoothly from maximum to minimum load for superior part-load performance in comfort cooling applications.
Technical Specifications / Documents
| (BIM) Engineering Links | Cooling Performance | Cooling Capacity | Dimensions | Weight | |||
|---|---|---|---|---|---|---|---|
| Outdoor Unit | Cooling Capacity | Power Consumption - Power Input | Efficiency -COP | Height | Width | Length | Operating Weight |
| kW | kW | COP | mm | mm | mm | kg | |
| HXEV Single Magnetic Bearing Centrifugal Compressor 380V / 3P / 50Hz | |||||||
| HXEV490SSTGF/E2209-RH-2/C2009-MK-2 | 352 | 51.38 | 6.85 | 2091 | 1313 | 3288 | 3358 |
| HXEV490DSTGF/F2612-JH-2/C2612-MK-2 | 703 | 99.68 | 7.053 | 2389 | 1483 | 4270 | 5270 |
| HXEV490TSTGF/F3012-JH-2/C2612-MK-2 | 1055 | 151.6 | 6.959 | 2890 | 1960 | 4311 | 7613 |
| HXEV490QSTGF/E3614-QH-2/C3014-MK-2 | 1407 | 198.3 | 7.095 | 2553 | 2088 | 5017 | 11174 |
| HXEV520QSTGF/E3614-PH-2/C3614-JK-2 | 1758 | 268.1 | 6.558 | 2863 | 2154 | 5017 | 12683 |
| HXEV Single Magnetic Bearing Centrifugal Compressor 380V / 3P / 50Hz | |||||||
| HXEV350SSTTF/E2209-RH/C2009-MK | 351.7 | 54.25 | 6.483 | 2091 | 1313 | 3288 | 3358 |
| HXEV400SSTTF/E2209-QH/C2009-KK | 527.5 | 90.77 | 5.811 | 2091 | 1313 | 3288 | 3463 |
| HXEV700SSTTF/E2209-PH/C2009-JK | 703.4 | 118.6 | 5.93 | 2091 | 1313 | 3288 | 3605 |
| HXEV350DSTTF/E2210-PH/C2210-KK | 703.4 | 108.9 | 6.456 | 2071 | 1403 | 3589 | 4425 |
| HXEV400DSTTF/E2212-QH/C2212-KK | 879.2 | 135.6 | 6.483 | 2071 | 1403 | 4174 | 4715 |
| HXEV470DSTTF/E2212-PH/C2212-JK | 1055 | 163.5 | 6.453 | 2071 | 1403 | 4174 | 4715 |
| HXEV700DSTTF/E2612-PH/C2212-JK | 1055 | 164.4 | 6.416 | 2238 | 1478 | 4270 | 5583 |
| HXEV700DSTTF/E2612-QH/C2612-KK | 1231 | 193.1 | 6.376 | 2238 | 1478 | 4270 | 5983 |
| HXEV700DSTTF/E2612-PH/C2612-JK | 1407 | 229.7 | 6126 | 2238 | 1478 | 4270 | 6195 |
| HXEV350TSTTF/E2614-RH/C2614-MK | 1055 | 159.6 | 6.612 | 2423 | 1504 | 4919 | 7004 |
| HXEV400TSTTF/E2614-QH/C2614-MK | 1231 | 184 | 6.69 | 2423 | 1504 | 4919 | 7105 |
| HXEV400TSTTF/E2614-PH/C2614-KK | 1407 | 217.7 | 6.464 | 2423 | 1504 | 4919 | 7347 |
| HXEV447TSTTF/E2614-PH/C2614-JK | 1583 | 244.2 | 6.482 | 2423 | 1504 | 4919 | 7497 |
| HXEV700TSTTF/E2614-PH/C2614-JK | 1583 | 244.6 | 6.472 | 2423 | 1504 | 4919 | 7497 |
| HXEV477TSTTF/E3014-PH/C2614-JK | 1758 | 272.3 | 6.456 | 2454 | 1554 | 4960 | 8190 |
| HXEV700TSTTF/E3014-PH/C2614-JK | 1758 | 271.2 | 6.482 | 2454 | 1554 | 4960 | 8190 |
| HXEV700TSTTF/E3014-QH/C3014-KK | 1934 | 302.6 | 6.392 | 2586 | 1589 | 4960 | 8844 |
| HXEV700TSTȚF/E3014-PH/C3014-JK | 2110 | 339.2 | 6.221 | 2586 | 1589 | 4960 | 9100 |
| HXEV700QSTTF/E3614-EKIC3014-KK | 2286 | 356.5 | 6.413 | 2553 | 2088 | 5017 | 11024 |
| HXEV700QSTTF/E3614-SK/C3014-JK | 2462 | 384.9 | 6.397 | 2553 | 2088 | 5017 | 11336 |
| HXEV700QSȚȚF/E3614-EKIC3614-KK | 2638 | 418.9 | 6.297 | 3161 | 2398 | 5021 | 12170 |
| HXEV700QSTTF/E3614-SK/C3614-JK | 2813 | 452 | 6.224 | 3161 | 2398 | 5021 | 12533 |
| HXEV50YSSM6F/E3012-PH-2/C2612-PK-2 | 1407 | 217.4 | 6.47 | 2890 | 1960 | 4311 | 7087 |
| HXEV50XSSM6F/E3312-PH-2/C3012-QK-2 | 1759 | 265 | 6.55 | 2736 | 2147 | 4352 | 7889 |
| HXEV70YSSM8F/E3612-PH-2/C3012-QK-2 | 2110 | 320.2 | 6.59 | 2736 | 2181 | 4368 | 9150 |
| HXEV70XSSM8F/E3612-QH-2/C3612-RK-2 | 2462 | 370 | 6.65 | 2850 | 2216 | 4372 | 9275 |
| HXEV70XSSM8F/E3612-PH-2/C3612-PK-2 | 2314 | 441.4 | 6.37 | 2850 | 2216 | 4372 | 10279 |
| HXEV Dual Magnetic Bearing Centrifugal Compressor 380V / 3P / 50Hz | |||||||
| HXEV50XDSM6F/E3614-PH-2JC3614-PK-2 | 3165 | 486.5 | 6.5 | 2926 | 2398 | 5021 | 12688 |
| HXEV50XDSM6F/E3614-PH-2/C3614-PK-2 | 3517 | 540.0 | 6.48 | 2926 | 2398 | 5021 | 12488 |
| HXEV70YDSM8F/E3914-PH-2/C3614-RK-2 | 3869 | 596.6 | 6.48 | - | - | - | 13334 |
| HXEV70YDSM8F/E3914-PH-2/C3614-PK-2 | 4220 | 648.4 | 6.5 | - | - | - | 13853 |
| HXEV70XDSM8F[E4514-RH-2/C4214-TK-2 | 4572 | 693.5 | 6.6 | 3077 | 2661 | 5090 | 16539 |
| HXEV7CXDSM8F/E4514-RH-2/C4214-RK-2 | 4924 | 745.4 | 6.6 | 3077 | 2661 | 5090 | 16915 |
| HXEV70XDSM8F/E4514-PH-2/C4214-PK-2 | 5275 | 805 | 6.55 | 3077 | 2661 | 5090 | 17629 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Smart Control
Microtech V control system with User friendly interface, Alarm History, Building Automation System (BAS)
Stable Operation
New Type 2 stage EXV to provide stable operation
Heat Exchanger
Shell & Tube Condenser Vessel
