| Refrigerant | R410A |

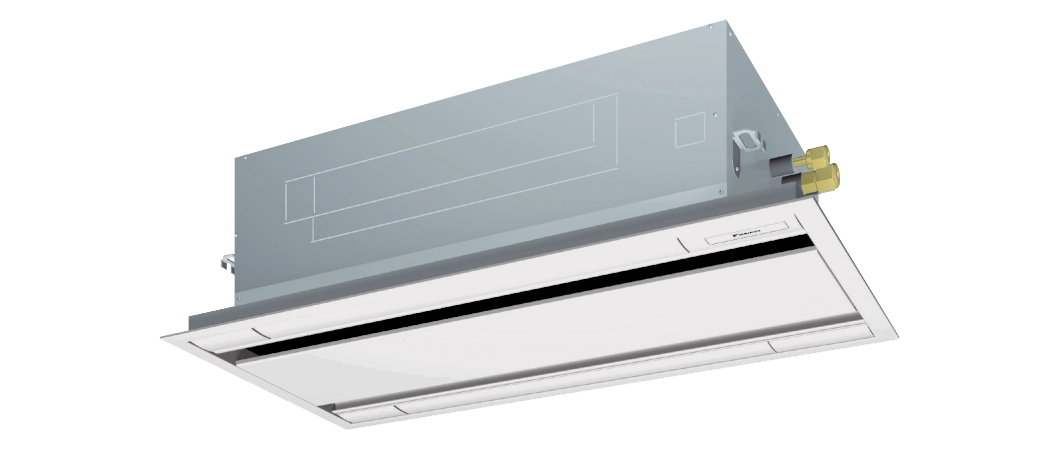

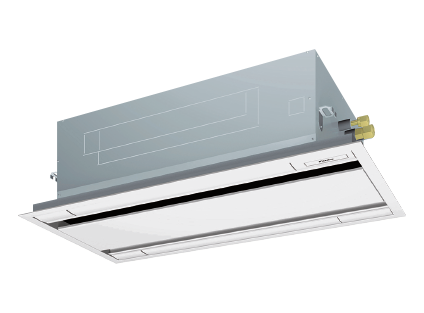

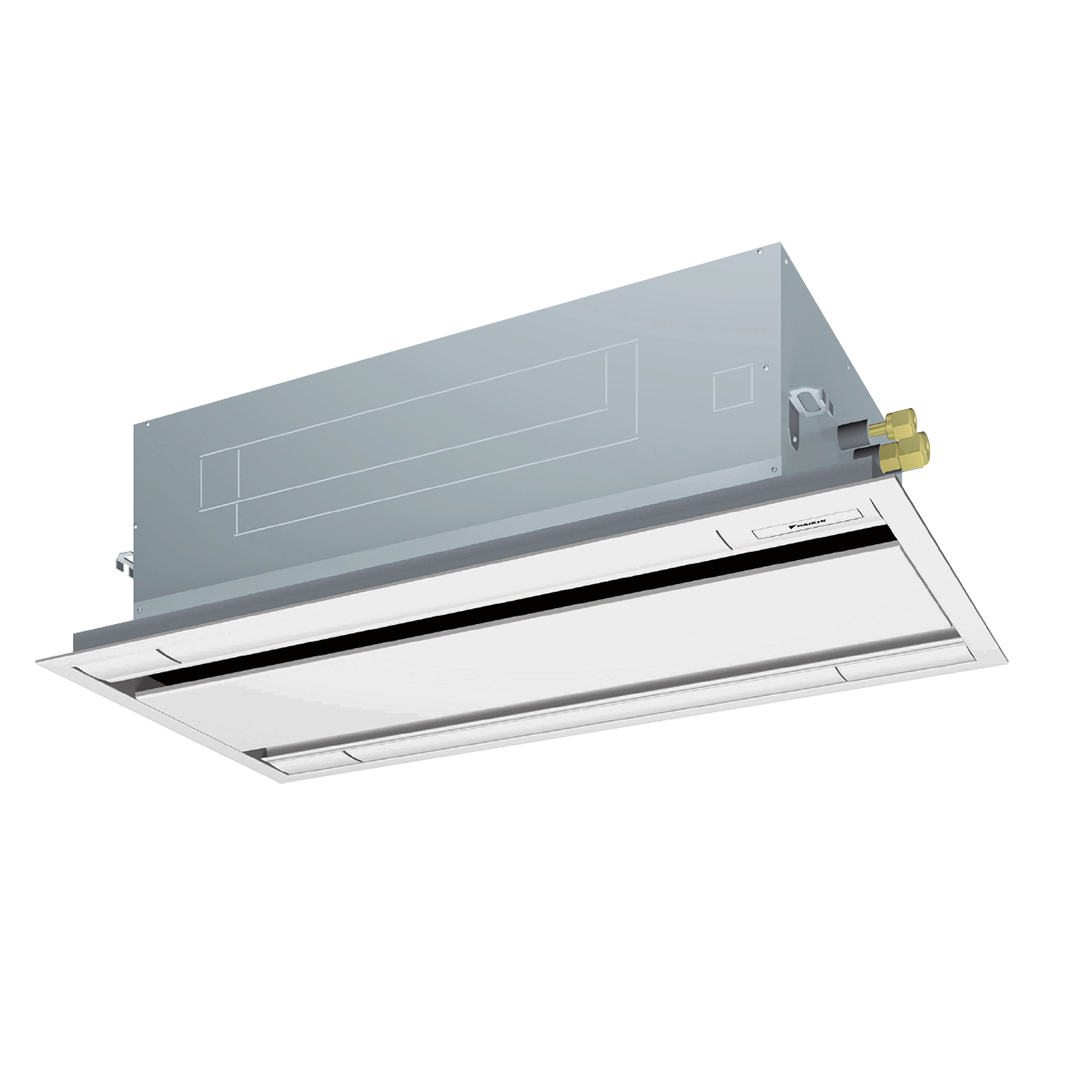

The FXCQ-BVM series is a double flow ceiling mounted cassette. It features a thin, light weight body that can be conveniently installed in narrow ceiling spaces. Maintenance work can also be easily accessed by removing the detachable front fascia.
FXCQ-BVM here
Technical Specifications / Documents
| (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Weight | ||||
|---|---|---|---|---|---|---|---|---|
| Indoor Unit | (kg) | |||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | IU | ||
| FXCQ20BVM | 2.2 | 1.7 | 2.5 | 175 | 305 | 775 | 620 | 29 |
| FXCQ25BVM | 2.8 | 2.2 | 3.2 | 192 | 305 | 775 | 620 | 29 |
| FXCQ32BVM | 3.6 | 2.6 | 4.0 | 192 | 305 | 775 | 620 | 29 |
| FXCQ40BVM | 4.5 | 3.2 | 5.0 | 200 | 305 | 775 | 620 | 29 |
| FXCQ50BVM | 5.6 | 3.9 | 6.3 | 250 | 305 | 990 | 620 | 33 |
| FXCQ63BVM | 7.1 | 4.9 | 8.0 | 267 | 305 | 990 | 620 | 36 |
| FXCQ80BVM | 9.0 | 6.3 | 10.0 | 433 | 305 | 1445 | 620 | 46 |
| FXCQ125BVM | 14.0 | 9.7 | 16.0 | 533 | 305 | 1445 | 620 | 51 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Comfort
5-step fan speed and Auto are available for control of the airflow rate. The flat flaps close entirely when the unit is not operating and there are no air intake grilles visible.
Flexible Installation
Even in spaces with high ceilings maximum 3.5m, a comfortable airflow is carried down to the floor level. Depth of all units is 620 mm, ideal for narrow spaces. Drain pump is equipped as standard accessory with 850mm lift.
Individual Airflow Direction Control
Airflow direction can be individually adjusted for each air discharge outlet to deliver optimal air distribution. *1. The function can only be set via BRC1E63.
Energy Saving
Power consumption is significantly reduced by specially developed small tube heat exchanger and DC fan motor.
Easy Maintenance
The flap parts are easy to clean because it is hard to condensate and get dirty. Check contamination in drain pan by simply removing suction grille and panel. Adjuster pockets mount at four corners of the unit enable to adjust the main unit without removing the panel.
