| Refrigerant | R410A |

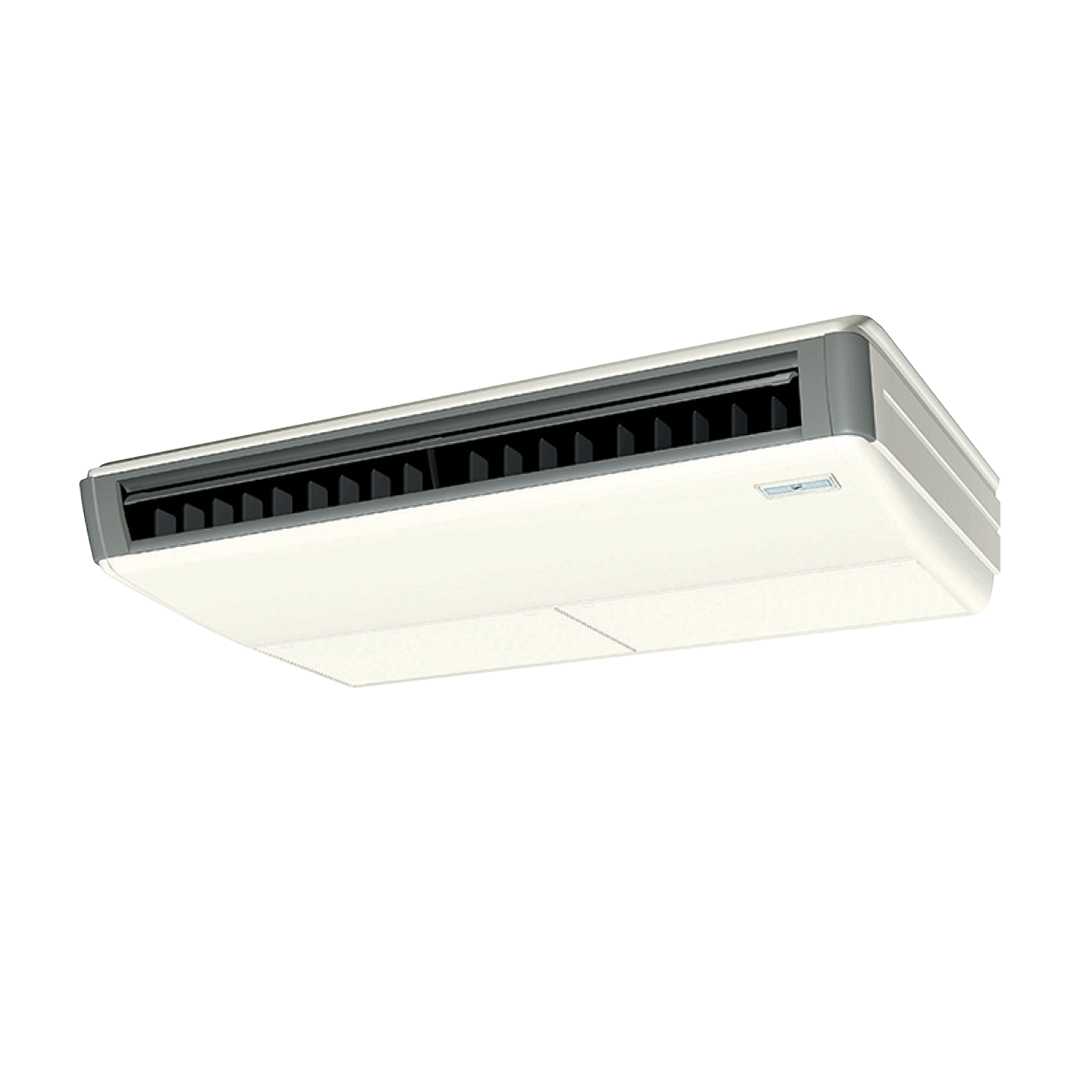

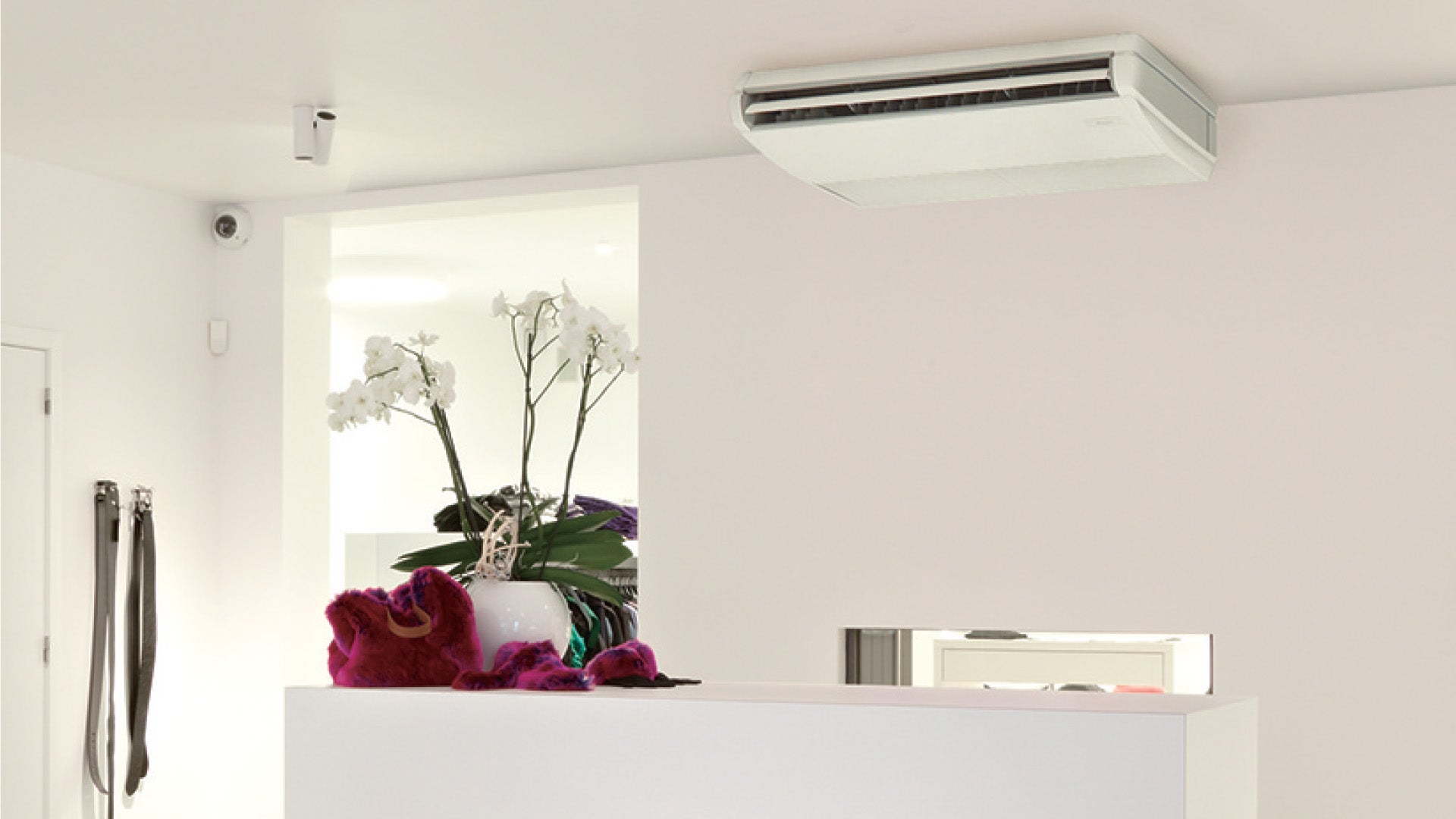

The FXHQ-MAVE series are single flow under ceiling units suited for installation in elongated spaces. Designed with a slim-line body, the FXHQ-MAVE series minimises it impact on your room's decor while providing quiet, wide angle airflow via its Quiet Stream Fan technology.
FXHQ-M/B Flyer here
Technical Specifications / Documents
| (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Weight | ||||
|---|---|---|---|---|---|---|---|---|
| Indoor Unit | (kg) | |||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | IU | ||
| FXHQ32MAVE | 3.6 | 2.9 | 4.0 | 200 | 195 | 960 | 680 | 24 |
| FXHQ50MAVE | 5.6 | 4.2 | 6.3 | 250 | 195 | 1160 | 680 | 28 |
| FXHQ63MAVE | 7.1 | 5.2 | 8.0 | 291 | 195 | 1160 | 680 | 28 |
| FXHQ80MAVE | 9.0 | 6.5 | 10.0 | 391 | 195 | 1160 | 680 | 33 |
| FXHQ100MAVE | 11.2 | 8.0 | 12.5 | 416 | 195 | 1400 | 680 | 33 |
| FXHQ125BVM | 14.1 | 10.2 | 16.0 | 567 | 235 | 1590 | 680 | 41 |
| FXHQ140BVM | 15.5 | 11.2 | 17.0 | 600 | 235 | 1590 | 680 | 41 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Comfort
Auto swing (up and down) and louvers (left and right by hand) bring comfort to the room. Switchable fan speed: 2-steps airflow rate control for FXHQ-MAVE models. Louver manually adjusts for straight or wide angle airflow.
Flexible Installation
The units fits more snugly into tight spaces. Drain pump kit (option) can be easily incorporated. Drain pipe connection can be done inside the unit. Refrigerant and drain pipe outlets are at the same opening. All wiring and internal servicing can be done from under the unit. The rear side removable frame allows ease of access for piping work.
Design Flexibility
125/140 Models provide greater capacity for larger spaces. The technology of the DC fan motor, wide sirocco fan, and large heat exchanger combine for greater airflow and quiet operation. Sophisticated design: Flap neatly closes when not in use. Suitable for high ceilings: maximum 4.3 m. Drain pump kit (option) includes a silver ion antibacterial agent that assists in preventing the growth of slime, bacteria, and mould that cause smells and clogging.
