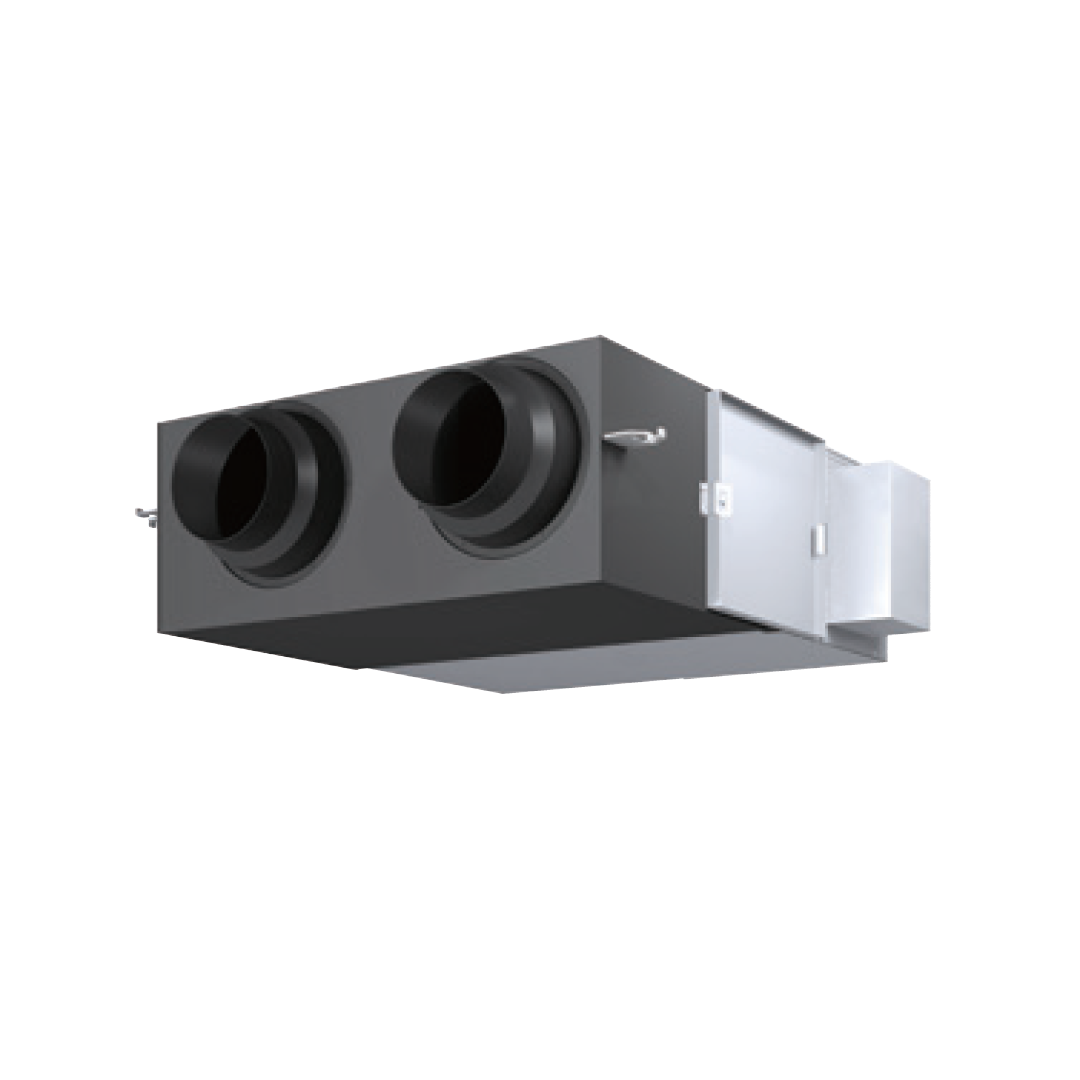

Daikin also offers energy reclaim ventilator systems; our VAM-HVE series are compact, energy efficient and can operate under a wide outdoor operating temperature range (-15 to 50°C). These units provide high enthalpy efficiency due to the greatly enhanced performance of the thin film element. Furthermore, ESP* of up to 235Pa offers greater design flexibility to your air conditioning solution. Other features include Night Purge Operation (night time free-cooling), interlocked operation with VRV Cassette presence sensor and optional CO2, indoor & outdoor humidity sensors for optimal operation.
By incorporating heat reclaim ventilators into your air conditioning design, heat loads can be reduced and your plan size can be better optimised.
*Max ESP varies from 130 Pa to 235 Pa depending on the model class
VAM-HVE Flyer here
Technical Specifications / Documents
| (BIM) Engineering Data Links | Description | Air Flow (IU) | Max ESP | Dimensions (IU) | Weight | ||
|---|---|---|---|---|---|---|---|
| Indoor Unit | (kg) | ||||||
| (mm) | (mm) | (mm) | IU | ||||
| VAM150HVE | 41L/s Heat Reclaim Ventilator | 42 | 106 | 278 | 551 | 810 | 22 |
| VAM250HVE | 69L/s Heat Reclaim Ventilator | 70 | 54 | 278 | 551 | 810 | 22 |
| VAM350HVE | 97L/s Heat Reclaim Ventilator | 100 | 141 | 306 | 800 | 879 | 31 |
| VAM500HVE | 138L/s Heat Reclaim Ventilator | 140 | 66 | 338 | 832 | 973 | 41 |
| VAM650HVE | 180L/s Heat Reclaim Ventilator | 180 | 53 | 338 | 832 | 973 | 43 |
| VAM800HVE | 222L/s Heat Reclaim Ventilator | 220 | 92 | 387 | 1012 | 1110 | 63 |
| VAM1000HVE | 277L/s Heat Reclaim Ventilator | 280 | 110 | 387 | 1012 | 1110 | 63 |
| VAM1500HVE | 416L/s Heat Reclaim Ventilator | 420 | 73 | 785 | 1012 | 1110 | 138 |
| VAM2000HVE | 555L/s Heat Reclaim Ventilator | 560 | 58 | 785 | 1012 | 1110 | 138 |
Note: VAM Units can be also used as a combination with the VRV System.
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
High Efficiency Paper (HEP) Element
VAM-HVE uses an air to air cross flow structure, passing indoor & outdoor air through a HEP element for total heat exchnage (sensible and latent heat). The HEP element has mould proof design and produced from non-flammable material.
Ventilation Modes
(1) Energy Recovery Ventilation (ERV) Mode (2) Bypass Mode (3) Automatic Mode
Energy Saving
Air conditioner and ventilation system can be interlocked to provide even greater comfort and energy saving. The system can be interlocked with Daikin air conditioners to provide energy saving ventilation solution for various situation.
Airflow Rate Control with CO2 Sensor
The CO2 sensor controls airflow rate so that it best matches the changes of CO2 level in the room. This prevents energy losses from over-ventilation while maintaining indoor air quality with optional CO2 sensor.
