VRV IV-S Heat Pump Series (RXYMQ-A/B)

Refrigerant R410A

Daikin's VRV IV-S multi split air conditioning system incorporates the latest technology from our VRV commercial air conditioners including remarkable energy efficiency, quiet operations and long piping runs of up to 100m (24kW Model) for flexible condenser placement.

With the size of the New Zealand residential properties reducing over time, the compact size and horizontal discharge design of the VRV IV-S outdoor unit makes it an ideal solution for the modern home.

VRV Urban Series Brochure here

Technical Specifications / Documents

(BIM) Engineering Data Links Capacity Air Flow (OU) Dimensions (IU) Max Pipe Length Level Difference Weight
Outdoor Unit TC HC SC H W D OU-IU OU-IU (kg)
(kW) (kW) (kW) (mm) (mm) (mm) (mm) (m) OU
VRV IV-S One Phase
RXYMQ3AV4A 9.0 - 10.0 1267 870 1100 460 - - 95
RXYMQ4AV4A 11.2 - 12.5 1267 990 940 320 - - 71
RXYMQ5BVM 14.0 - 14.0 1350 990 940 320 - - 78
RXYMQ6BVM 16.0 - 16.0 1333 990 940 320 - - 80
VRV IV-S Three Phase
RXYMQ8AY1 22.4 - 25.0 2333 1430 940 320 - - 138
RXYMQ9AY1 24.0 - 26.0 2333 1430 940 320 - - 138

Note: For Maximum Piping lengths and level differences please refer to VRV brochure located on the BIM platform.

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Compact Footprint

Available in a wide range of capacities whilst maintaining a compact installation footprint with long piping runs of up to 100m (24kW Model).

...
Ultimate Versatility

As many as 14 indoors can be connected ranging from wall mounted, floor standing, bulkheads, cassettes and ceiling suspended units.

...
Comfort for Everyone

Each indoor unit can be individually controlled, scheduled and set to the desired room temperature ensuring optimal comfort for all occupants.

...
Night Time Quiet Mode

Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.

...
Intelligent Comfort

Wall mounted indoor units feature Daikin’s Intelligent Eye human sensor that ensures draught free comfort and energy saving operations when the room is unoccupied.

...
Energy Efficient

Running costs are kept low as only rooms requiring air conditioning can be switch on independently.

1234

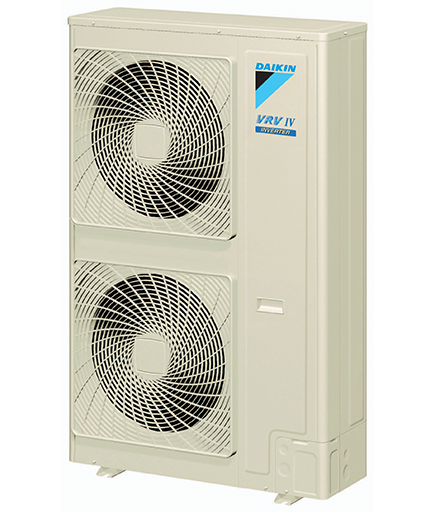

VRV-IV-S Technology

1Saw Edge Fan Blade

The addition of a saw tooth edge at the rear of the blade smooths airflow over the blade surface, reducing turbulence which in turn results in a quieter, more efficient means of delivering comfort to your home

2Compressor

Daikin’s swing and scroll compressors are quieter and more efficient than conventional compressors, thanks to their high pressure dome construction and usage of high pressure lubrication oil.

3Reluctance DC Motor

All VRV IV-S compressors are equipped with Reluctance DC Motors. These motors utilise the magnetic torque or neodymium magnets in conjunction with reluctance torque, resulting in more energy efficient operation.

4Inverter Technology

The Inverter PCB works like the accelerator of a car, gently increasing or decreasing power. This ensures your desired temperature is reached quicker and steadily maintained without fluctuations.
