| Refrigerant | R32 |

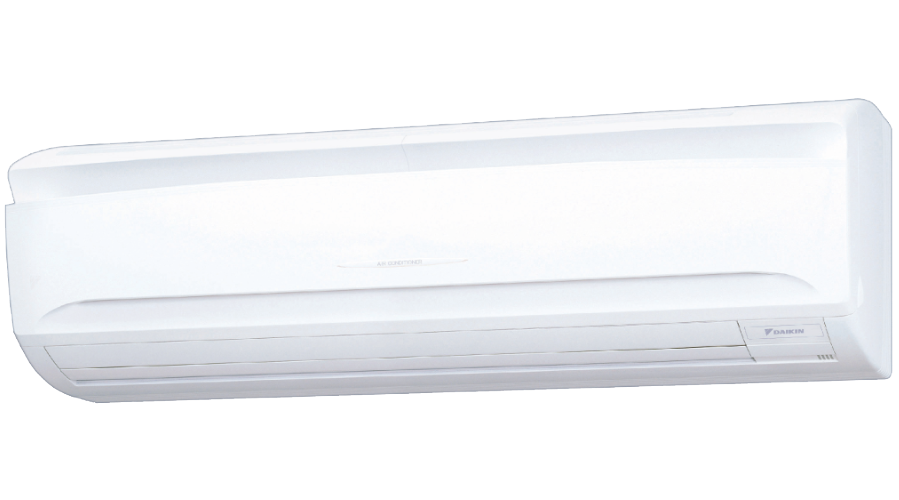

Daikin's SkyAir R32 Wall Mounted air conditioning system is designed to be compact, powerful and yet facilitate easy installation. Offering six refrigerant piping directions for greater flexibility, extra high fan speed setting for longer throws and vertical auto swing function with 5-step airflow direction for increased comfort.
If you want a new HFC refrigerant with zero ozone depletion potential, which also has a lower global warming potential than R-410A, use R-32. Achieving new levels of energy efficiency while responding to environmental needs, Daikin has redesigned the SkyAir series from the ground up using R-32, which has a third of the global warming potential of R410A.
FTXC-A / FAA-B Flyer here
Technical Specifications / Documents
| System Name | (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Max Pipe Length | Level Difference | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | OU-IU | OU-IU | (kg) | |||||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | (mm) | (m) | IU | OU | ||||
| FTXC50A-AV | FTXC50AV1A | RXC50AV1A | 5.0 | - | 6.0 | 300 | 290 | 1050 | 238 | 50 | 30 | 13 | 45 |
| FTXC60A-AV | FTXC60AV1A | RXC60AV1A | 6.0 | - | 7.1 | 300 | 290 | 1050 | 238 | 50 | 30 | 13 | 45 |
| FTXC71A-AV | FTXC71AV1A | RXC71AV1A | 7.1 | - | 8.0 | 300 | 290 | 1050 | 238 | 75 | 30 | 13 | 69 |
| FTXC85A-AV | FTXC85AV1A | RXC85AV1A | 8.5 | - | 10.0 | 433 | 340 | 1200 | 240 | 75 | 30 | 17 | 78 |
| FTXC100A-AV | FTXC100AV1A | RXC100AV1A | 10.0 | - | 11.2 | 433 | 340 | 1200 | 240 | 75 | 30 | 17 | 93 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Reuse of Existing Piping
Simplify installation by reusing existing pipes. Reuse of existing pipes may be particularly convenient in circumstances like: pipes are buried making new pipe installations difficult; outdoor unit difficult to access; multiple units are being upgraded at the same time.
Smart Airflow Control
Indoor units can provide 3 fan speed. Comfort ensured by ‘Auto’* airflow rate that matches load level which is convenient energy-efficiency for stores with peak and quiet periods. * “Auto” is applicable when BRC1E63 is used.
Optional Drain Pump Kit
Drain outlet available on both left & right side of the indoor unit.
Comfort Operation
Auto swing (up and down) and wide-angle louvers. An air discharge modes ensure comfortable air distribution across the entire room. Comfort even on the far side of the room. Switchable fan speed: 3 steps and Auto. Dry Programme controlled by microprocessor. Installation Flexibility
Contact a Daikin Sales Engineer
A Daikin Sales Engineer will assess and plan the right air conditioning solution for you, with creativity and sensitivity to the needs of your family or business.
