| Refrigerant | R32 |
Engineered in Europe with the latest technology, its stylish and elegant design seamlessly integrates into the modern home. The Daikin Zena Vogue offers a premium climate solution. Your design, our product. Together creating simply perfect comfort all year round.
Daikin's newly designed super quiet fan is engineered to run at high efficiency in a compact space. It combines optimum airflow and top performance with almost inaudible sound. This stylish unit comes in both Hairline White or Black Wood finish.
Zena Vogue Flyer here
Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.
Technical Specifications / Documents
| System Name | (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Max Pipe Length | Level Difference | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | OU-IU | OU-IU | (kg) | |||||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | (mm) | (m) | IU | OU | ||||
| FTXJ25T-W | FTXJ25TVMAW | RXJ25TVMA | 2.5 | 2.5 | 3.2 | 176 | 295 | 798 | 185 | 20 | 15 | 11 | 30 |
| FTXJ35T-W | FTXJ35TVMAW | RXJ35TVMA | 3.5 | 3.0 | 3.7 | 190 | 295 | 798 | 185 | 20 | 15 | 11 | 30 |
| FTXJ50T-W | FTXJ50TVMAW | RXJ50TVMA | 5.0 | 3.8 | 6.0 | 218 | 295 | 798 | 185 | 30 | 20 | 11 | 54 |
| FTXJ60T-W | FTXJ60TVMAW | RXJ60TVMA | 6.0 | 4.4 | 7.2 | 243 | 295 | 798 | 185 | 30 | 20 | 11 | 54 |
| FTXJ25T-K | FTXJ25TVMAK | RXJ25TVMA | 2.5 | 2.5 | 3.2 | 176 | 295 | 798 | 185 | 20 | 15 | 11 | 30 |
| FTXJ35T-K | FTXJ35TVMAK | RXJ35TVMA | 3.5 | 3.0 | 3.7 | 190 | 295 | 798 | 185 | 20 | 15 | 11 | 30 |
| FTXJ50T-K | FTXJ50TVMAK | RXJ50TVMA | 5.0 | 3.8 | 6.0 | 218 | 295 | 798 | 185 | 30 | 20 | 11 | 54 |
| FTXJ60T-K | FTXJ60TVMAK | RXJ60TVMA | 6.0 | 4.4 | 7.2 | 243 | 295 | 798 | 185 | 30 | 20 | 11 | 54 |
Note: FTXJ-T-W denotes white model. FTXJ-T-K denotes black model All indoor units come standard with a wireless controller.
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Simply Perfect Design

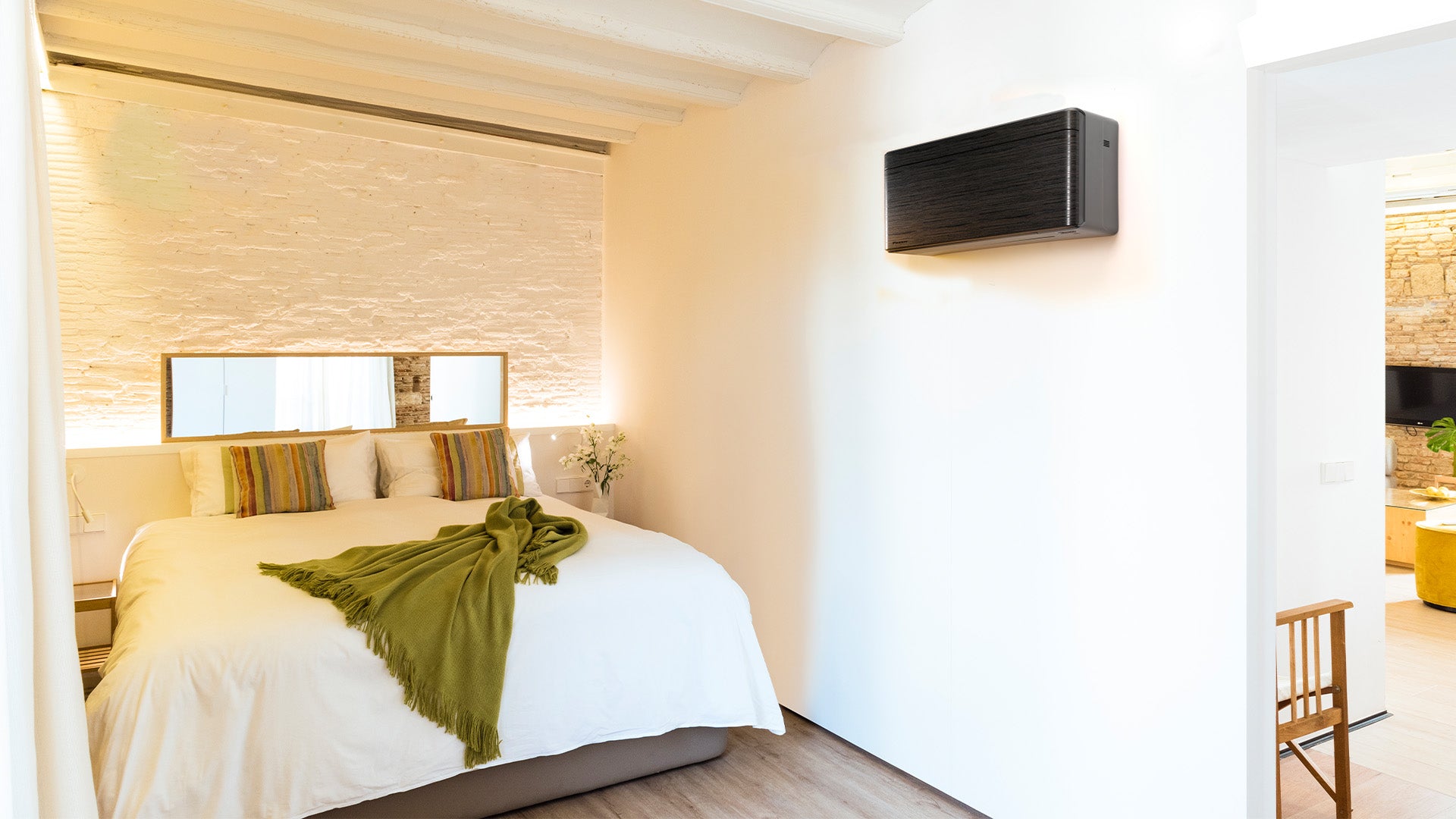

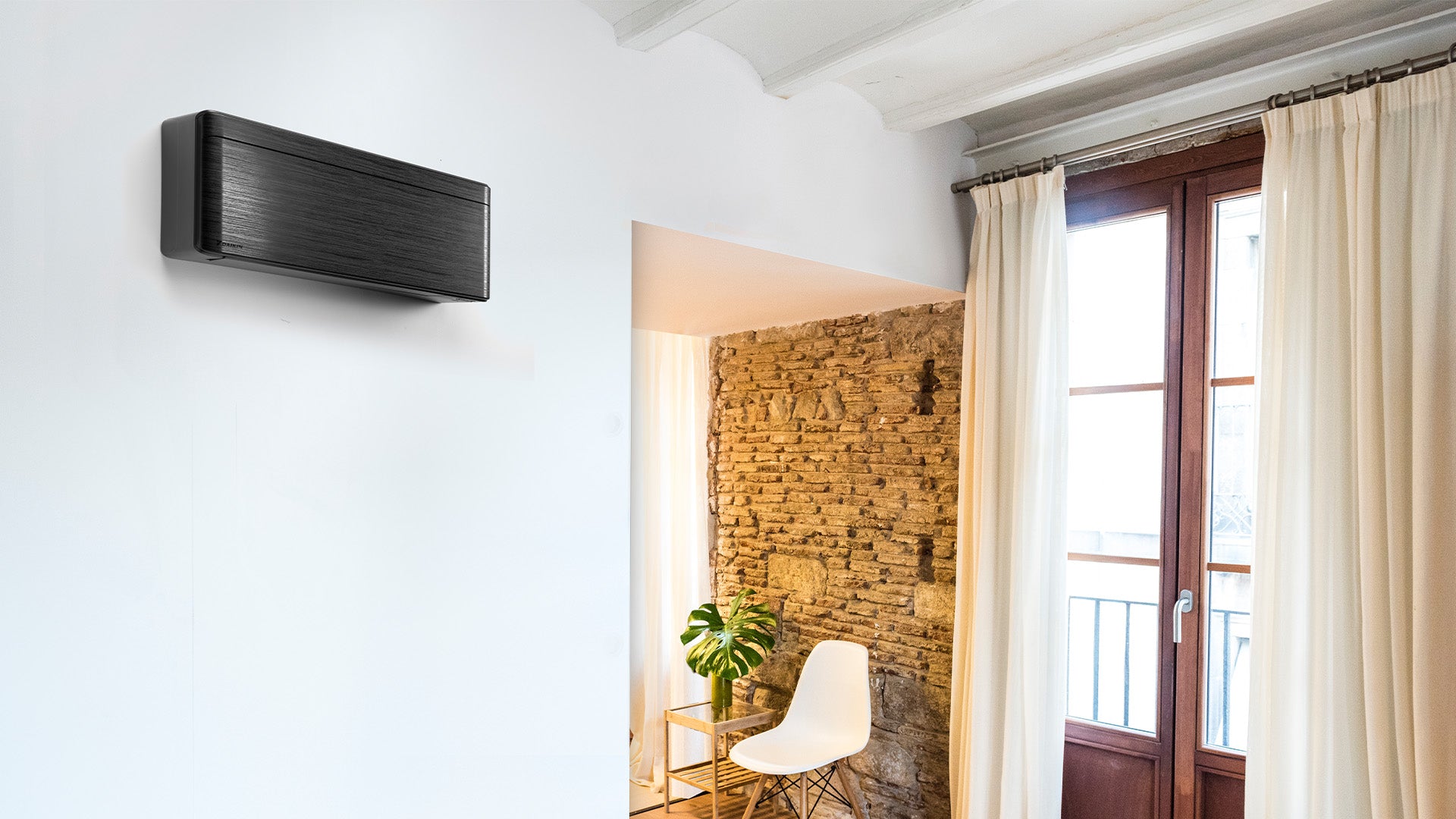

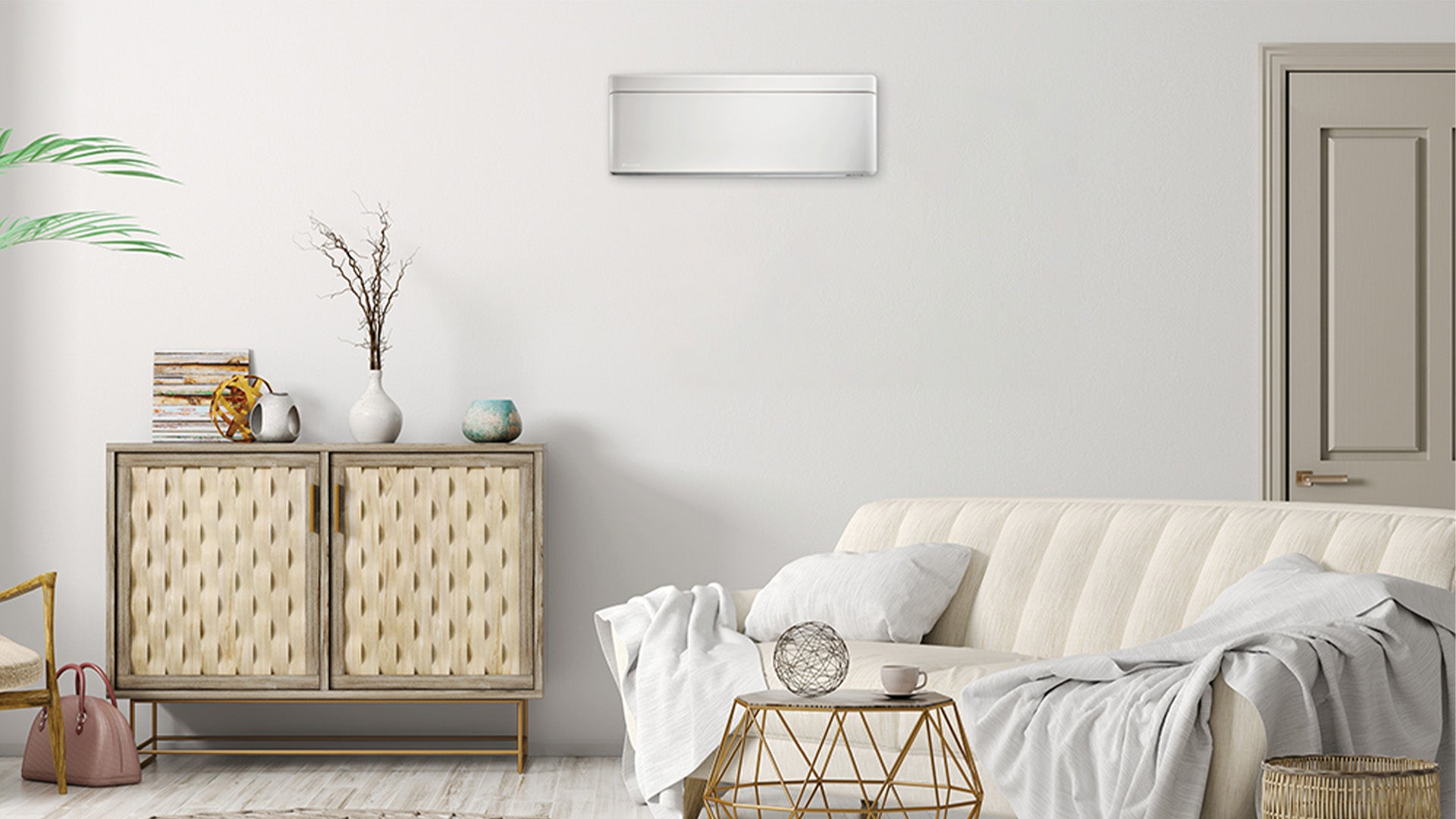

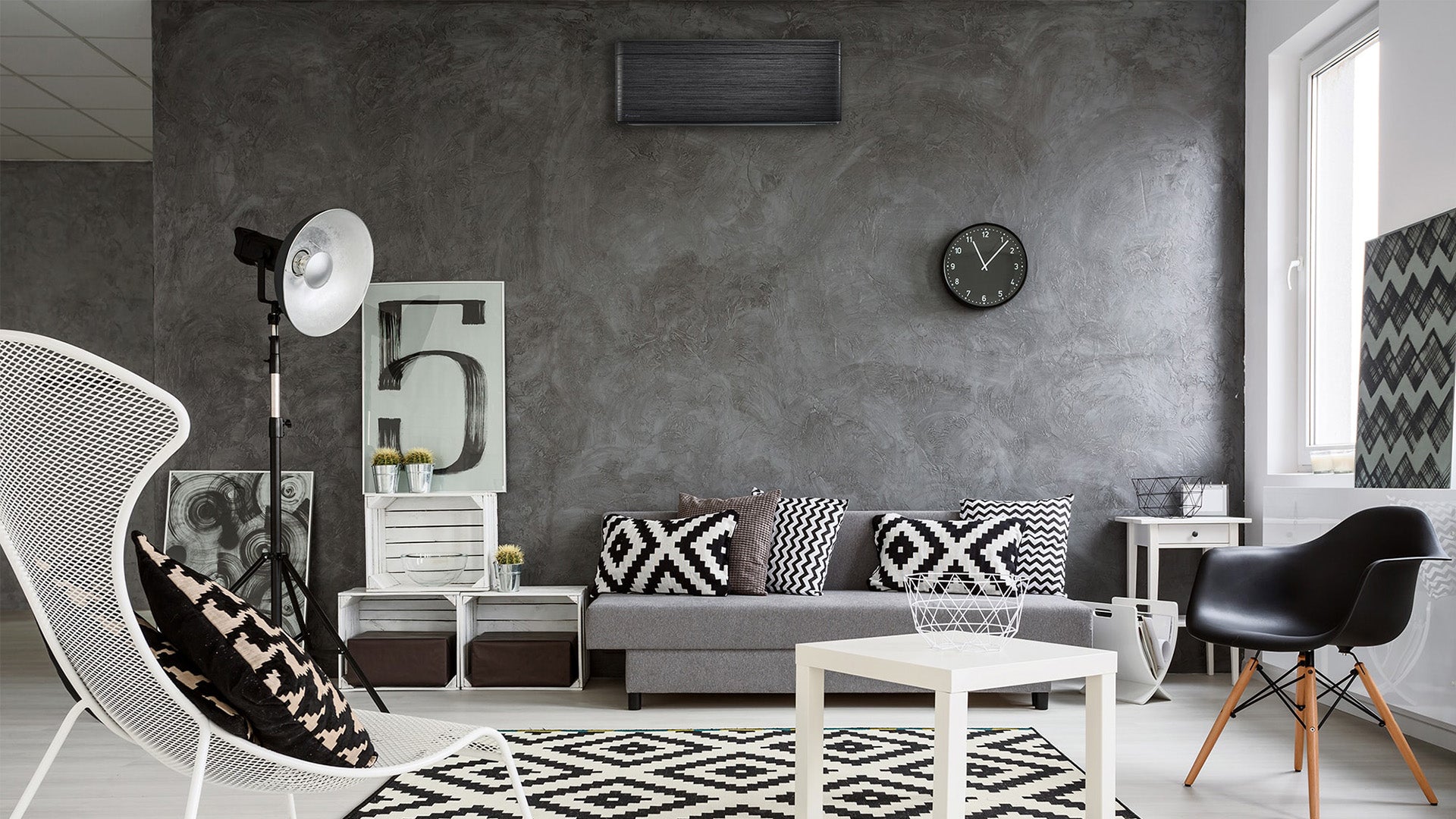

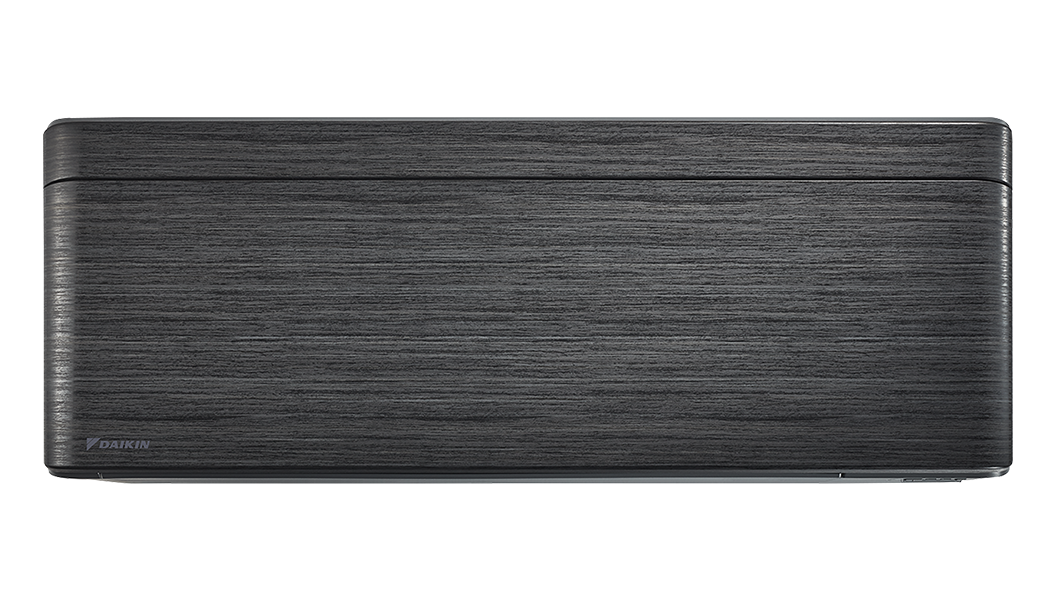

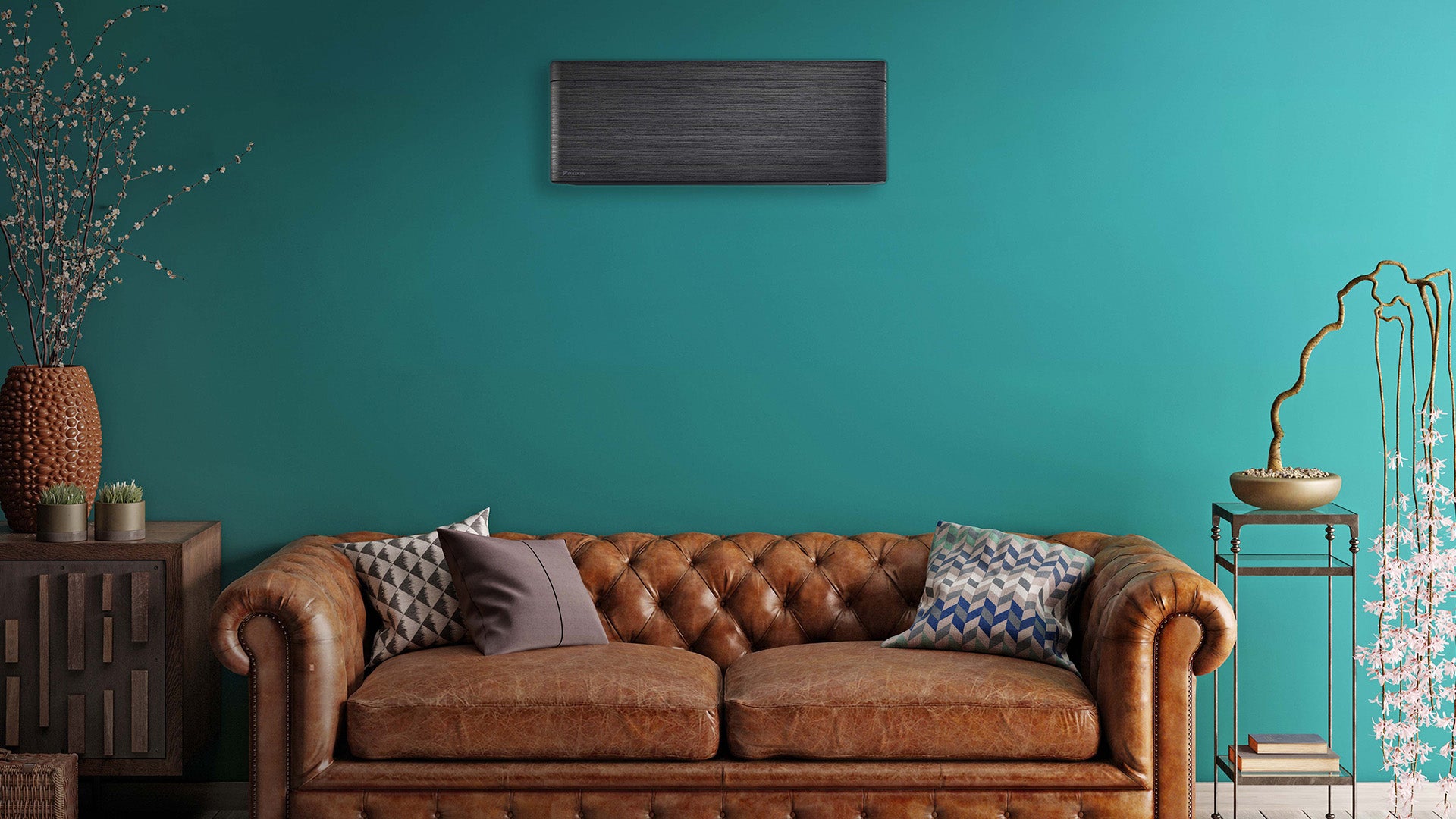

Whether you choose the Hairline White or the Black Wood finish Zena Vogue's curved corners and simple textured front panel allow it to blend perfectly into any decor.
Program Dry Function
Besides reducing humidity, this function automatically controls temperature and airflow rate and will cleverly switch into cooling mode if the room temperature rises too much.
Heavy Duty Purification
Daikin's flash streamer technology offers heavy duty air purification. The high speed electron discharge destroys bacteria, mould and allergens at a much higher speed than most conventional air filters, leaving your air safe to breathe
Ultra Compact
At just 798mm long, 295mm high and 185mm deep, ZenaVogue incredibily compact yet surprisingly powerful.
Grid Eye Sensor
The Intelligent grid eye sensor detects the temperature in the room using a grid of 64 small squares. It then directs air to the areas that require more cooling or heating for event temperature distribution.
Super Quiet Fan
Daikin's newly designed super quiet fan is engineered to run at high efficiency in a compact space. It combines optimum airflow and top performance with almost inaudible sound.
New Swing Compressor
Whether you choose the Hairline White or the Black Wood finish Zena Vogue's curved corners and simple textured front panel allow it to blend perfectly into any decor.

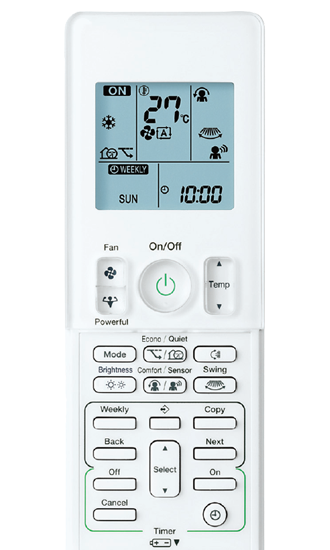

Controller Features
Operation Timers
Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.
Quiet Mode
Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.
Comfort Mode
Airflow is optimised to stream upwards during cooling and downwards during heating.
Powerful Mode
Gives a boost in cooling or heating for 20 minutes beyond normal capacity.
Program Dry Function
Automatic intelligent airflow and temperature control to reduce room humidity.
Lamp Brightness Setting
Adjusts the brightness of the multi colour monitor lamp.
Direct Connection
For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.

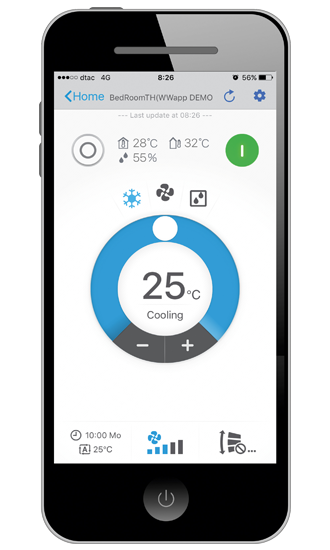

Internet Connection
All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.
Wi-Fi Connection
A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.
