MCB80ZPVM

Capacities Airflow Rates: 480 m3/h

At Daikin, we’re dedicated to delivering products andtechnologies that not only create a comfortable livingenvironment, but also create a healthy environment toturn your home into the great indoors.

Daikin’s Air Purifers keep your indoor space fresh and comfortable all year round.

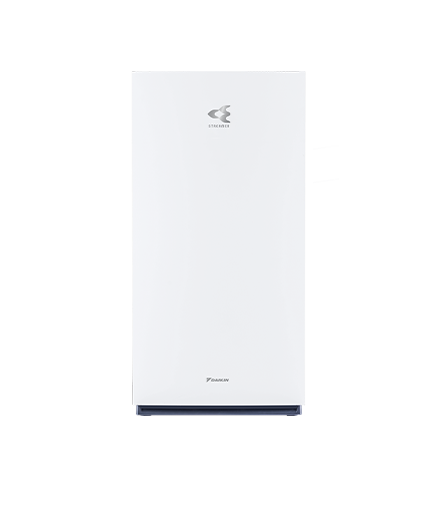

The NEW MCB80ZPVM Daikin Air Purifier has twice the decomposition power with twin streamer and UVC.

Air Purifier MC80 Flyer here

Technical Specifications

System N/A
Capacities Airflow Rates: 480 m3/h
Indoor Type Floor Standing
Power Supply 1 Phase: 220-240V, 50Hz

Documents

Brochure >

Key Features & Technology

... ...
...
TWIN Streamer Technology

Daikin’s unique Streamer method excels in oxidative decomposition.

...
UVC Deep Ultraviolet Radiation

The unit employs the industry’s first deep ultraviolent (UVC) LED with a wavelength around 265nm, which is effective in suppressing viruses.

...
Daikin Eye

Displays the condition of the air selected by air monitor in 3 colours: blue, orange, and red. If PM2.5 (μg/m3) or humidity (%) is selected, it displays the same colour as the sensor lamp.

...
Anti Bacterial HEPA Filter

A new filter impregnated with an anti bacterial agent has been added to the electrostatic HEPA filter that excels in disinfection performance. Testing organization: Kaken Test Center. Test number: No.OS-20-052690. Test method: JIS L 1902:2015 Bacterial liquid absorption method Test target: three types of bacteria. Test result: Antibacterial activity value 2.0 or higher.

...

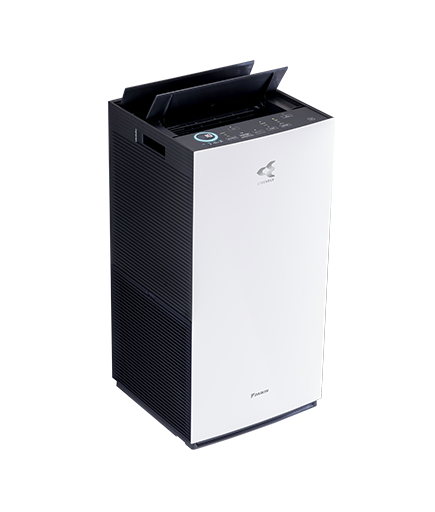

Stylish and Compact Design

Flexible choice of where to place the unit. Only 315mmwidth and depth. Fits in neatly because the unit is 630mmhigh, roughly the height of common desks.

...
Econo Mode

The power saving mode that saves energy byoperating between the fan setting “Quiet” and“Low”. Power consumption and operating sounds arereduced. It is recommended to use during sleep.

...
Anti-Pollen Mode

Suitable for pet owners. This mode creates a gentle air by switching every 5 minutes between the fan setting Standard” and “Low” so that the pollen can be drawn in and caught before it reaches the floor.

...
Auto Fan Mode

Automatically adjusts the fan speed according to the degree of air impurity in your room. The fan speed increases when more impurities are detected.

...
Wireless LAN Connection

Shape the world according to your needs with Wireless LAN connection to your air purifier. You can monitor your indoor air quality condition with your smartphone while you are on the move.

Three Technologies Combine for Speedy Disinfection

UVC DEEP ULTRAVIOLET LED

INDUSTRY FIRST*1
The unit employs the industry’s first deep ultraviolent (UVC) LED with a wavelength around 265nm, which is effective in suppressing viruses.

ANTI BACTERIAL HEPA FILTER

PLUS ANTI BACTERIAL*2
A new filter impregnated with an anti bacterial agent has been added to the electrostatic HEPA filter that excels in disinfection performance.

STREAMER

DAIKIN’S UNIQUE TECHNOLOGY*3
Daikin’s unique Streamer method excels in oxidative decomposition.

1 Announced for commercial-use air purifiers with release of ACB50X on March 1, 2021. 2 Testing organization: Kaken Test Center. Test number: No.OS-20-052690. Test method: JIS L 1902:2015 Bacterial liquid absorption method Test target: three types of bacteria. Test result: Antibacterial activity value 2.0 or higher. 3 As of February 2023. Streamer discharge technology generates decomposing elements that have oxidative decomposition capability.

Daikin Eye

Displays the condition of the air selected by air monitor in 3 colours: blue, orange, and red. If PM2.5 (μg/m3) or humidity (%) is selected,it displays the same colour as the sensor lamp.

...

  1. Verified by Swiss multi-national testing and certification company, SGS with the following test condition: Daikin Air Purifier model MC55YPVM operating in a 10m³ chamber in Turbo mode (test number: SHES220200348271).

  2. Verified at Wakayama Medical University with the following test condition: Irradiated allergens with Streamer & checked decomposition of allergen proteins by either the ELISA method, electrophoresis or electron microscopy (test number: CZ04B024).

  3. Verified at Japan Food Research Laboratories using antibacterial test/mould elimination test (test number: 204041635-001).

1234567

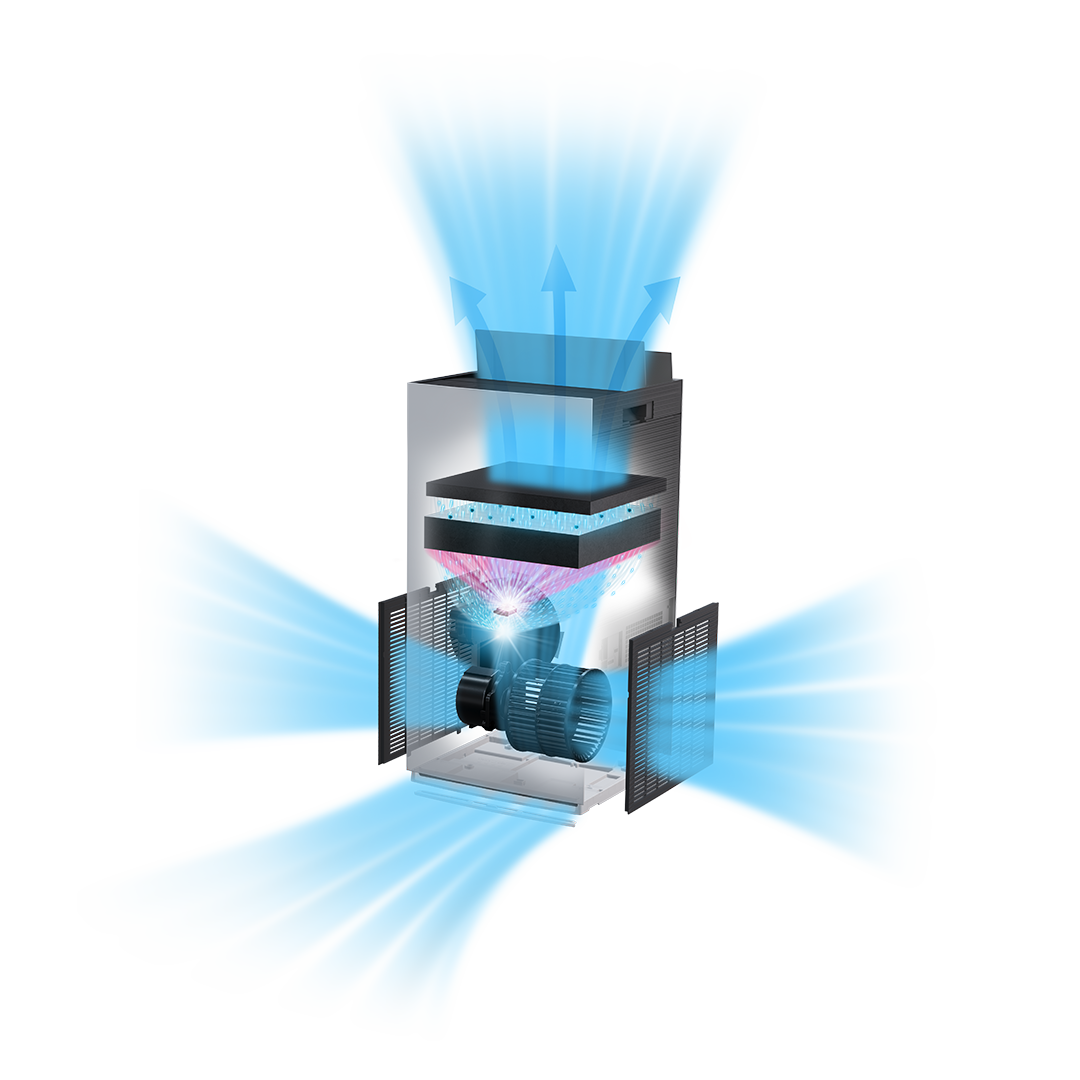

Internal Structure

1Deodorising Filter

2Anti Bacterial HEPA Filter

Catches fine particles of dust. (Need to change for every 1 year - more frequent filtering changing may be needed depending on actual operating conditions.

3Twin Streamer Unit

High speed electrons are discharged.

4UVC LED 265NM

Effective in suppressing viruses.

5Pre-Filter

It may become necessary to change out items that usually do not require replacing due to environmental and operational conditions. Regular cleaning is necessary.

6Pre-filter

It may become necessary to change out items that usually do not require replacing due to environmental and operational conditions. Regular cleaning is necessary.

7Pre-filter

It may become necessary to change out items that usually do not require replacing due to environmental and operational conditions. Regular cleaning is necessary.
