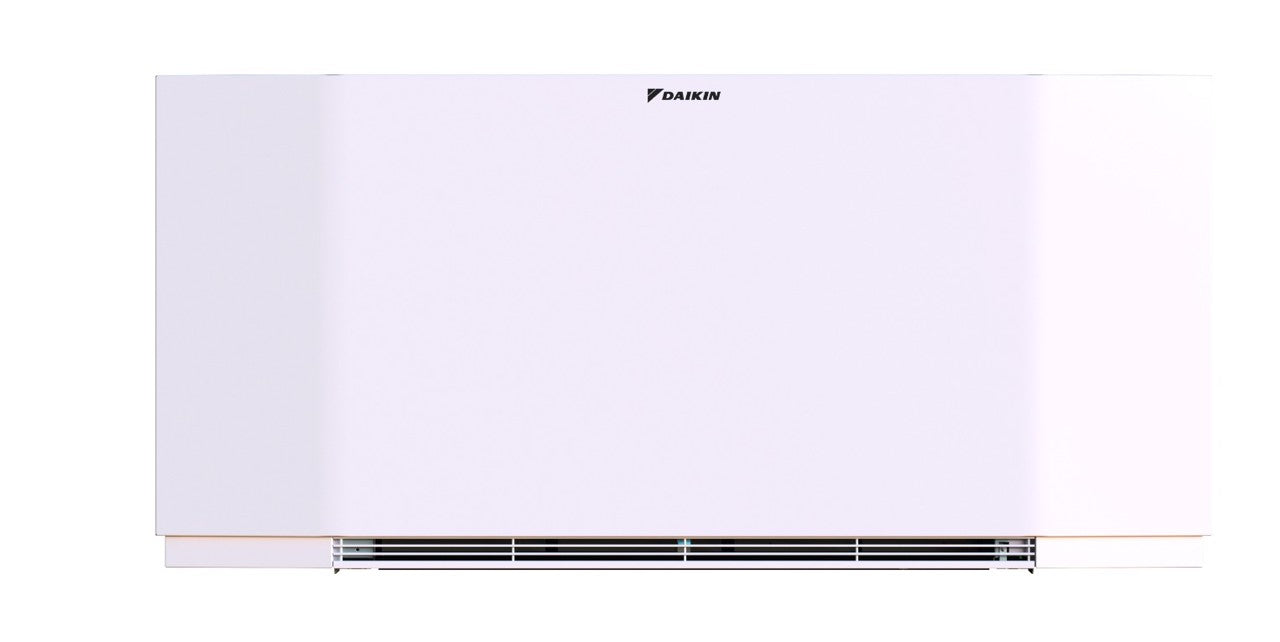

ALTHERMA HEAT PUMP CONVECTOR

Available in Heating and Cooling
Capacities Heating: FWXV10AATV3 Min/Med/Max: (0.95 / 1.63 / 2.18), FWXV15AATV3 Min/Med/Max: (1.26 / 2.33 / 3.11), FWXV20AATV3 Min/Med/Max: (1.90 / 3.05 / 3.88), Cooling: FWXV10AATV3 Min/Med/Max: (0.66 / 1.36 / 1.77), FWXV15AATV3 Min/Med/Max: (1.33 / 2.16 / 2.89), FWXV20AATV3 Min/Med/Max: (1.82 / 2.52 / 3.20)

Ideal for those wanting a modern, water-powered take on the classic radiator with the ability to connect to a hot water heat pump system.

For a stylish, energy-efficient update to the classic radiator look no further than the Altherma Heat Pump Convector.

This unit is compatible with all hydronic Daikin Altherma heating and cooling solutions.

Warranty info >
...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Controls

Daikin offers a wide variety of controllers that are functional and have a great design.

...
Perfect Combination

This heat pump convector fits perfectly within the Daikin Altherma 3 range.

...
DC Inverter

Daikin Altherma HPC uses the latest technologies to consume less electricity down to 3W of standby power input while maintaining its reliable performance.

...
Discreet

As the unit reaches its set point, a continuous modulating fan gradually reduces its speed and creates less noise. The unit’s sound pressure measures 25 dB(A) at 1m when the fan is on a low-speed setting.

...
Modulated Airflow*

When there is less heating demand, the unit modulates its airflow to slow down the fan rate, and in the process, lowers the operational sound. A standard ON/OFF fan running simultaneously at full speed can increase sound pressure. *Applicable with certain control units.

Controller Features

... ... ... ... ... ...
...

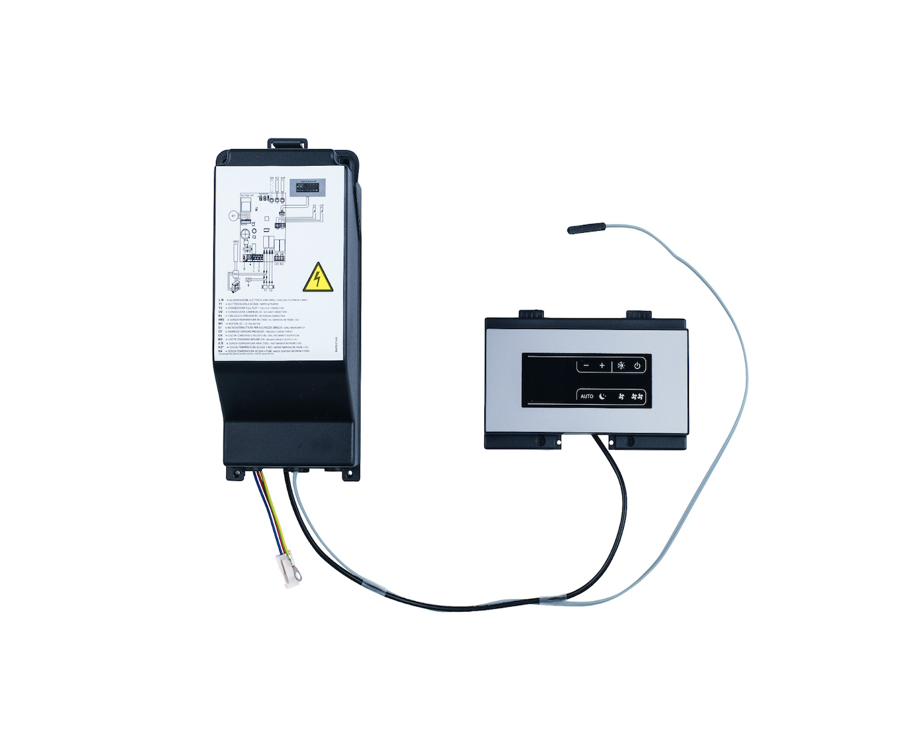

EKRTCTRL1 CONTROLS

Built-in controller (It fits the unit internally)

  • Fully modulating, Multicolor display
...
EKRTCTRL2 Controls

Built-in controller (It fits the unit internally) - 4-speed selection

...

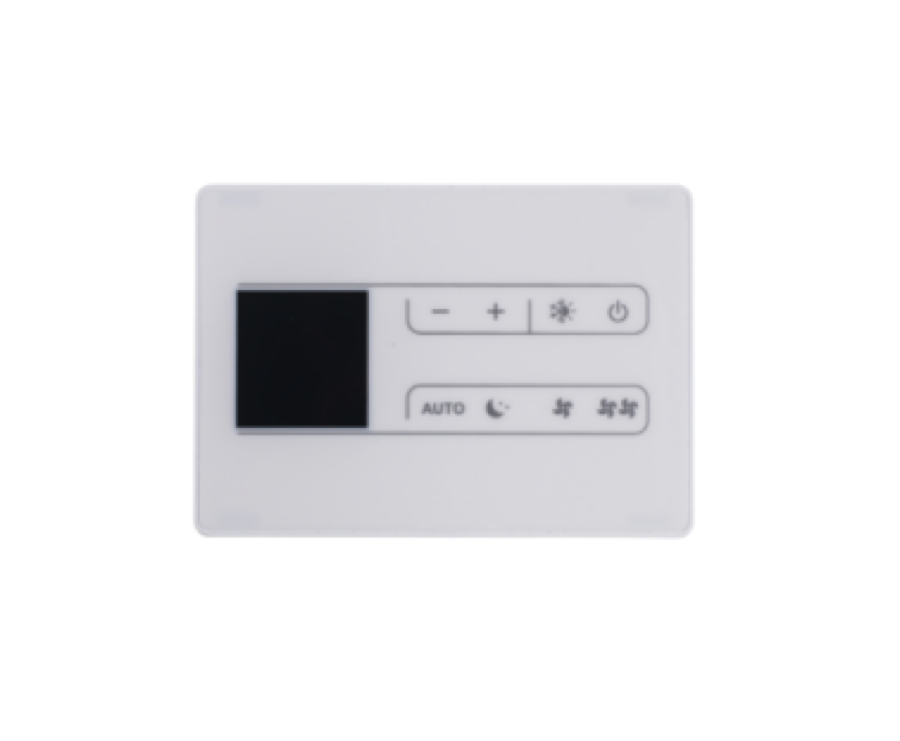

EKWHCTRL1 CONTROLS

Wall controller - Fully modulating - In combination with EKWHCTRL0

...

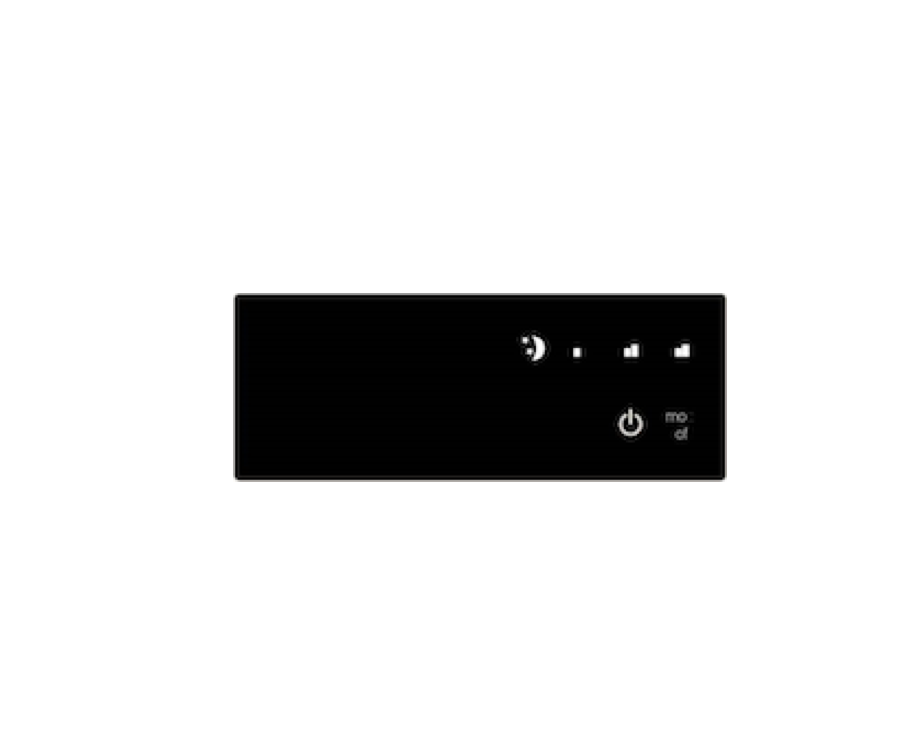

EKPCBO CONTROLS

Built-in controller (It fits the unit internally) - ON/OFF - In combination with external thermostats

Technical Specifications

System Reverse Cycle
Capacities Heating: FWXV10AATV3 Min/Med/Max: (0.95 / 1.63 / 2.18), FWXV15AATV3 Min/Med/Max: (1.26 / 2.33 / 3.11), FWXV20AATV3 Min/Med/Max: (1.90 / 3.05 / 3.88), Cooling: FWXV10AATV3 Min/Med/Max: (0.66 / 1.36 / 1.77), FWXV15AATV3 Min/Med/Max: (1.33 / 2.16 / 2.89), FWXV20AATV3 Min/Med/Max: (1.82 / 2.52 / 3.20)
Indoor Type Hydronic Cooling / Heating
Power Supply 1 Phase: 220-240V, 50Hz
Show Full Tech Specs >

Documents

Ideal for those wanting a modern, water powered take on the classic radiator with ability to connect to a hot water heat pump system.

Brochure >
